KA8602B Integrated Circuit Chip LOW VOLTAGE AUDIO POWER AMPLIFIER

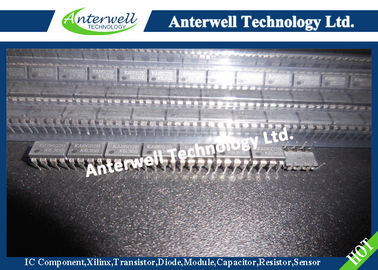

: Large Image : KA8602B Integrated Circuit Chip LOW VOLTAGE AUDIO POWER AMPLIFIER

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	KA8602B

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Supply Voltage:	+2.0 To +16 V	Load Impedance:	8 To 100 Ω
Peak Load Current:	± 200 MA	Differential Gain (5KHz Bandwidth):	0 To 46 DB
Voltage At Mute (Pin 7):	0 To Vcc V	Ambient Temperature:	-20 To 470 °C
High Light:	electronics ic chip , integrated circuit components

KA8602B LOW VOLTAGE AUDIO AMPLIFIER

INTRODUCTION

The KA8602B is the audio power amplifier available for low voltages. KA8602B supplies differential outputs for maximizing output swing at low voltages. KA8602B doesn't need coupling capacitors to the speaker. The gain of this amp is controlled easily by two external resistors.

FEATURES

• Wide Supply Voltage (2 ~ 16V)

• Low Quiescent Supply Current (I_CC = 2.7mA : Typ)

• Easy Gain Control

• Medium Output Power P_O = 250mW at V_CC = 6V, RL = 32W, THD = 10%

• Minimum External Parts

• Load Impedance Range (8W~ 100W)

• Low Distortion

• Mute Function (l_CC = 65mA : Typ)

KA8602B Integrated Circuit Chip LOW VOLTAGE AUDIO POWER AMPLIFIER

BLOCK DIAGRAM

KA8602B Integrated Circuit Chip LOW VOLTAGE AUDIO POWER AMPLIFIER

ABSOLUTE MAXIMUM RATINGS

Characteristic	Symbol	Value	Unit
Supply Voltage	V_CC	- 1.0 ~ + 18	V
Output Current (output pin)	I_O	± 250	mA
Maximum Voltage (input, Ripple rejection, Mute pin)	V_{I (MAX)}	- 1.0 ~ V_CC + 1.0	V
Applied Output Voltage (output pin) when disabled	V_O	- 1.0 ~ V_CC + 1.0	V
Junction Temperature	T_J	- 55 ~ + 140	°C
