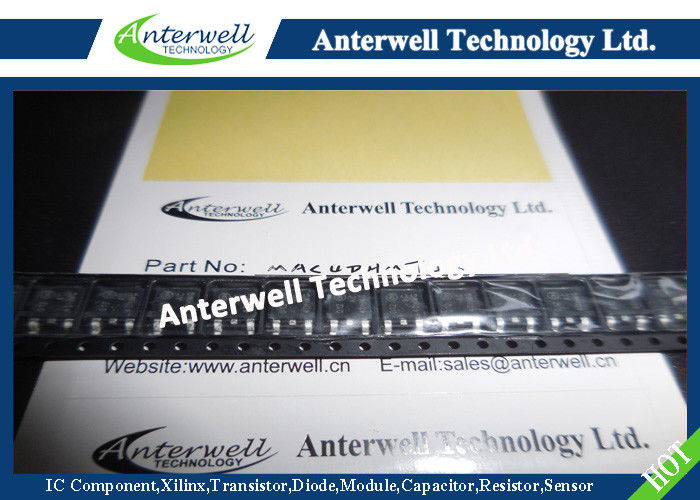

MAC4DHM
Sensitive Gate Triacs
Silicon Bidirectional Thyristors
TRIACS 4.0 AMPERES RMS 600 VOLTS
Designed for high volume, low cost, industrial and consumer applications such as motor control; process control; temperature, light and speed control.
Features
• Small Size Surface Mount DPAK Package
• Passivated Die for Reliability and Uniformity
• Four−Quadrant Triggering
• Blocking Voltage to 600 V
• On−State Current Rating of 4.0 A RMS at 93°C
• Low Level Triggering and Holding Characteristics
• Epoxy Meets UL 94 V−0 @ 0.125 in
• ESD Ratings: Human Body Model, 3B 8000 V
Machine Model, C 400 V
• Pb−Free Packages are Available
PIN ASSIGNMENT
1 | Main Terminal 1 |
2 | Main Terminal 2 |
3 | Gate |
4 | Main Terminal 2 |
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Rating | Symbol | Value | Unit |
---|---|---|---|
Peak Repetitive Off−State Voltage (Note 1) (TJ = −40 to 110°C, Sine Wave, 50 to 60 Hz, Gate Open) |
VDRM, VRRM |
600 | V |
On−State RMS Current (Full Cycle Sine Wave, 60 Hz, TC = 93°C) |
IT(RMS) | 4.0 | A |
Peak Non-Repetitive Surge Current (One Full Cycle, 60 Hz, TJ = 110°C) |
ITSM | 40 | A |
Circuit Fusing Consideration (t = 8.3 msec) | I2t | 6.6 | A2sec |
Peak Gate Power (Pulse Width ≤ 10 sec, TC = 93°C) |
PGM | 0.5 | W |
Average Gate Power (t = 8.3 msec, TC = 93°C) |
PG(AV) | 0.1 | W |
Peak Gate Current (Pulse Width ≤ 10 sec, TC = 93°C) |
IGM | 0.2 | A |
Peak Gate Voltage (Pulse Width ≤ 10 sec, TC = 93°C) |
VGM | 5.0 | V |
Operating Junction Temperature Range | TJ | −40 to 110 | °C |
Storage Temperature Range | Tstg | −40 to 150 | °C |
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. VDRM and VRRM for all types can be applied on a continuous basis. Blocking voltages shall not be tested with a constant current source such that the voltage ratings of the device are exceeded.
