Product Details:
Payment & Shipping Terms:
|
Supply Voltage: | - 0.3 To 4.2 V | Analog Supply Voltage: | - 0.3 To 4.2 V |
---|---|---|---|
Power Dissipation: | 300 MW | Operating Ambient Temperature: | - 20 To 85 / -40 To 85 ℃ |
Storage Temperature: | - 65 To 150 ℃ | Package: | QFP-100 |
High Light: | electronics ic chip,integrated circuit components |

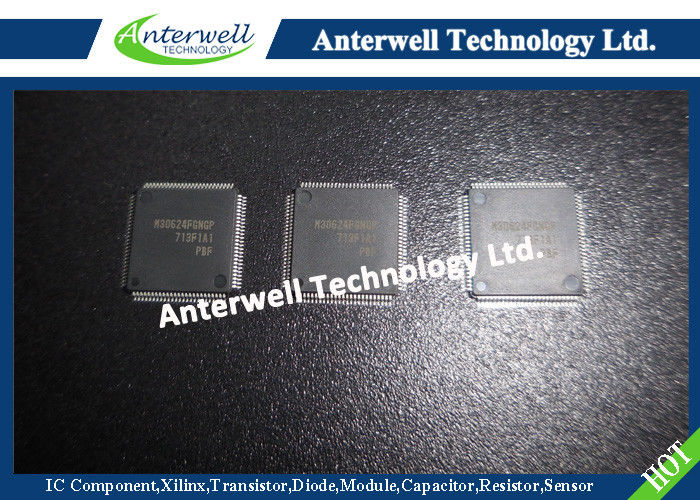

M16C / 62N Group
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
Description
The M16C/62N group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, low voltage (2.4V(mask ROM version is 2.2V) to 3.6V), they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.
The M16C/62N group includes a wide range of products with different internal memory types and sizes and various package types.
Features
• Memory capacity..................................ROM (See Figure 1.1.4. ROM Expansion)
RAM 10K to 20K bytes
• Shortest instruction execution time ......62.5ns (f(XIN)=16MHZ, VCC=3.0V to 3.6V)
142.9ns (f(XIN)=7MHZ, VCC=2.4V to 3.6V without software wait)
• Supply voltage ..........................3.0V to 3.6V (f(XIN)=16MHZ, without software wait)
2.4V to 3.0V (f(XIN)=7MHZ, without software wait)
2.2V to 3.0V (f(XIN)=7MHZ, with software one-wait) :mask ROM version
• Low power consumption ......................34.0mW (VCC = 3V, f(XIN)=10MHZ, without software wait)
66.0mW (VCC = 3.3V, f(XIN)=16MHZ, without software wait)
• Interrupts..............................................25 internal and 8 external interrupt sources, 4 software
interrupt sources; 7 levels (including key input interrupt)
• Multifunction 16-bit timer......................5 output timers + 6 input timers
• Serial I/O .............................................5 channels (3 for UART or clock synchronous,
2 for clock synchronous)
• DMAC ..................................................2 channels (trigger: 24 sources)
• A-D converter.......................................10 bits X 8 channels (Expandable up to 18 channels)
• D-A converter.......................................8 bits X 2 channels
• CRC calculation circuit.........................1 circuit
• Watchdog timer....................................1 line
• Programmable I/O ...............................87 lines
• Input port..............................................1 line (P85 shared with NMI pin)
• Memory expansion ..............................Available (to 4M bytes)
• Chip select output ................................4 lines
• Clock generating circuit ...................2 built-in clock generation circuits
(built-in feedback resistor, and external ceramic or quartz oscillator)
Applications
Audio, cameras, office equipment, communications equipment, portable equipment
Absolute maximum ratings
Symbol | Parameter | Condition | Rated value | Unit | |
---|---|---|---|---|---|
Vcc | Supply voltage | VCC=AVCC | - 0.3 to 4.2 | V | |
AVcc | Analog supply voltage | VCC=AVCC | - 0.3 to 4.2 | V | |
VI | Input voltage | RESET, CNVSS, BYTE, P00 to P07, P10 to P17, P20 to P27, P30 to P37,P40 to P47, P50 to P57, P60 to P67, P72 to P77, P80 to P87, P90 to P97, P100 to P107, VREF, XIN | - 0.3 to Vcc + 0.3 | V | |
P70, P71 | - 0.3 to 4.2 | V | |||
VO | Output voltage | P00 to P07, P10 to P17, P20 to P27, P30 to P37, P40 to P47, P50 to P57, P60 to P67, P72 to P77, P80 to P84, P86, P87, P90 to P97, P100 to P107. XOUT | - 0.3 to Vcc + 0.3 | V | |
P70, P71 | - 0.3 to 4.2 | V | |||
Pd | Power dissipation | 300 | mW | ||
Topr | Operating ambient temperature | Topr=25℃ | - 20 to 85 / -40 to 85 (Note) | ℃ | |
Tstg | Storage temperature | - 65 to 150 | ℃ |
Note: Specify a product of -40°C to 85°C to use it.
