Product Details:
Payment & Shipping Terms:
|
Supply Voltage (VDD): | −0.3V To +4V | Input Voltage (IN+, IN−): | −0.3V To +3.9V |
---|---|---|---|
Output Voltage (TTL OUT): | −0.3V To (VDD + 0.3V) | Output Short Circuit Current: | −100mA |
Lead Temperature Soldering (4 Sec.): | +260°C | Maximum Junction Temperature: | +135°C |
High Light: | electronic integrated circuit,linear integrated circuits |

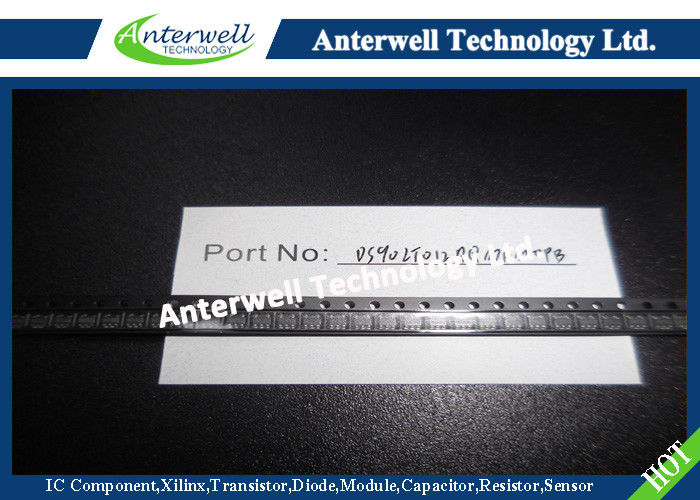

DS90LT012AQ
Automotive LVDS Differential Line Receiver
General Description
The DS90LT012AQ is a single CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise, and high data rates. The devices are designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Swing (LVDS) technology.
The DS90LT012AQ accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The DS90LT012AQ includes an input line termination resistor for point-to-point applications.
The DS90LT012AQ and companion LVDS line driver DS90LV011AQ provide a new alternative to high power PECL/ECL devices for high speed interface applications.
Features
■ AECQ-100 Grade 1
■ -40 to +125°C temperature range operation
■ Compatible with ANSI TIA/EIA-644-A Standard
■ >400 Mbps (200 MHz) switching rates
■ 100 ps differential skew (typical)
■ 3.5 ns maximum propagation delay
■ Integrated line termination resistor (100Ω typical)
■ Single 3.3V power supply design
■ Power down high impedance on LVDS inputs
■ LVDS inputs accept LVDS/CML/LVPECL signals
■ Pinout simplifies PCB layout
■ Low Power Dissipation (10mW typical@ 3.3V static)
■ SOT-23 5-lead package
Connection Diagram Truth Table
Functional Diagram
Absolute Maximum Ratings (Note 4)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (VDD) −0.3V to +4V
Input Voltage (IN+, IN−) −0.3V to +3.9V
Output Voltage (TTL OUT) −0.3V to (VDD + 0.3V)
Output Short Circuit Current −100mA
Maximum Package Power Dissipation @ +25°C
MF Package 794mW
Derate MF Package 7.22 mW/°C above +25°C
Package Thermal Resistance (4-Layer, 2 oz. Cu, JEDEC)
θJA 138.5°C/W
θJC 107.0°C/W
Lead Temperature Soldering (4 sec.) +260°C
Maximum Junction Temperature +135°C
ESD Rating HBM (Note 1) >8 kV
MM (Note 2) >250V
CDM (Note 3) >1250V
Note 1: Human Body Model, applicable std. JESD22-A114C
Note 2: Machine Model, applicable std. JESD22-A115-A
Note 3: Field Induced Charge Device Model, applicable std. JESD22-C101-C
