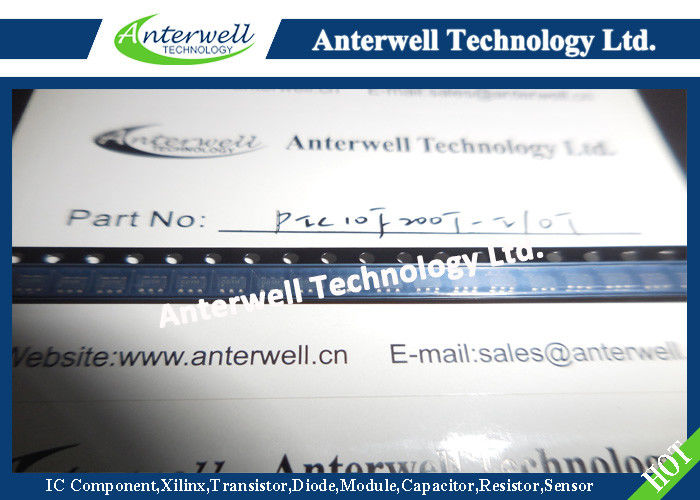

PIC10F200T-I/OT Electronic IC Chips 6-Pin, 8-Bit Flash Microcontrollers



PIC10F200/202/204/206

6-Pin, 8-bit Flash Microcontrollers



Devices Included In This Data Sheet:

• PIC10F200                • PIC10F204

• PIC10F202                • PIC10F206



High-Performance RISC CPU:

• Only 33 single-word instructions to learn

• All single-cycle instructions except for program branches, which are two-cycle

• 12-bit wide instructions

• 2-level deep hardware stack

• Direct, Indirect and Relative Addressing modes for data and instructions

• 8-bit wide data path

• 8 Special Function Hardware registers

• Operating speed:

  - 4 MHz internal clock

  - 1 μs instruction cycle



Special Microcontroller Features:

• 4 MHz precision internal oscillator:

  - Factory calibrated to ±1%

• In-Circuit Serial Programming™ (ICSP™)

• In-Circuit Debugging (ICD) support

• Power-on Reset (POR)

• Device Reset Timer (DRT)

• Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation

• Programmable code protection

• Multiplexed MCLR input pin

• Internal weak pull-ups on I/O pins

• Power-Saving Sleep mode

• Wake-up from Sleep on pin change



Low-Power Features/CMOS Technology:

• Operating Current:

  - < 175 μA @ 2V, 4 MHz, typical

• Standby Current:

  - 100 nA @ 2V, typical

• Low-power, high-speed Flash technology:

  - 100,000 Flash endurance

  - > 40 year retention

• Fully static design

• Wide operating voltage range: 2.0V to 5.5V

• Wide temperature range:

  - Industrial: -40°C to +85°C

  - Extended: -40°C to +125°C



Peripheral Features (PIC10F200/202):

• 4 I/O pins:

  - 3 I/O pins with individual direction control

  - 1 input-only pin

  - High current sink/source for direct LED drive

  - Wake-on-change

  - Weak pull-ups

• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler



Peripheral Features (PIC10F204/206):

• 4 I/O pins:

  - 3 I/O pins with individual direction control

  - 1 input-only pin

  - High current sink/source for direct LED drive

  - Wake-on-change

  - Weak pull-ups

• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler

• 1 Comparator:

  - Internal absolute voltage reference

  - Both comparator inputs visible externally

  - Comparator output visible externally





Absolute Maximum Ratings^(†)

Ambient temperature under bias..........................................................................-40°C to +125°C

Storage temperature ...........................................................................................-65°C to +150°C

Voltage on V_DD with respect to V_SS ............................................................................. 0 to +6.5V

Voltage on MCLR with respect to V_SS..........................................................................0 to +13.5V

Voltage on all other pins with respect to V_SS .............................................. -0.3V to (V_DD + 0.3V)



Total power dissipation⁽¹⁾ .................................................................................................800 mW

Max. current out of V_SS pin ..................................................................................................80 mA

Max. current into V_DD pin......................................................................................................80 mA

Input clamp current, I_IK (V_I < 0 or V_I > V_DD).........................................................................±20 mA

Output clamp current, I_OK (V_O < 0 or V_O > V_DD) ................................................................±20 mA



Max. output current sunk by any I/O pin ...............................................................................25 mA

Max. output current sourced by any I/O pin ...........................................................................25 mA

Max. output current sourced by I/O port ................................................................................75 mA

Max. output current sunk by I/O port ......................................................................................75 mA

---

Note 1: Power dissipation is calculated as follows: PDIS = VDD x {IDD – ∑ IOH} + ∑ {(VDD – VOH) x IOH} + ∑(VOL x IOL)

†NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.



SOT-23 Pin Diagrams



8-Pin PDIP Pin Diagrams



8-Pin DFN Pin Diagrams
