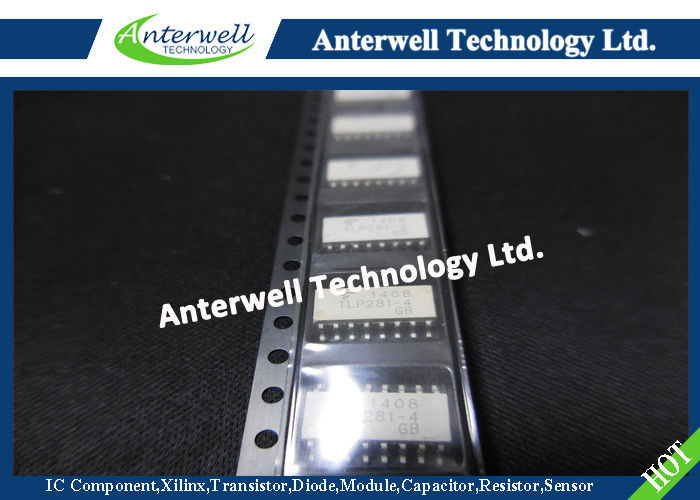

TLP281-4GB Electronic IC Chips Power ic chip PROGRAMMABLE CONTROLLERS

: Large Image : TLP281-4GB Electronic IC Chips Power ic chip PROGRAMMABLE CONTROLLERS

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TLP281-4GB

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7500pcs

Contact Now

Detailed Product Description

Forward Current:	50 MA	Pulse Forward Current:	1 A
Reverse Voltage:	5 V	Junction Temperature:	125 °C
Operating Temperature:	−55 To 100 °C	Storage Temperature:	−55 To 125 °C
High Light:	electronic integrated circuit , linear integrated circuits

TLP281,TLP281-4

PROGRAMMABLE CONTROLLERS

AC/DC-INPUT MODULE

PC CARD MODEM(PCMCIA)

TLP281 and TLP281-4 is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA Fax modem, programmable controllers.

TLP281 and TLP281-4 consist of photo transistor, optically coupled to a gallium arsenide infrared emitting diode.

• Collector-Emitter Voltage : 80 V (MIN)

• Current Transfer Ratio : 50% (MIN)

Rank GB : 100% (MIN)

• Isolation Voltage : 2500 Vrms (MIN)

• UL Recognized : UL1577 , File No. E67349

• BSI Approved : BS EN 60065: 2002,

: BS EN 60950-1: 2002 Certificate No. 8143, 8144

Pin Configuration (top view)

TLP281-4GB Electronic IC Chips Power ic chip PROGRAMMABLE CONTROLLERS

Absolute Maximum Ratings (Ta = 25°C)

CHARACTERISTIC		SYMBOL	RATING		UNIT
CHARACTERISTIC		SYMBOL	TLP281	TLP281-4	UNIT
LED	Forward Current	I_F	50		mA
	Forward Current Derating	∆I_F /°C	−0.7 (Ta≥53°C)	−0.5 (Ta≥25°C)	mA /°C
	Pulse Forward Current (Note 1)	I_FP	1		A
	Reverse Voltage	V_R	5		V
	Junction Temperature	Tj	125		°C
DETECTOR	Collector-Emitter Voltage	V_CEO	80		V
	Emitter-Collector Voltage	V_ECO	7		V
	Collector Current	I_C	5		mA
	Collector Power Dissipation (1 Circuit)	P_C	150	100	mW
	Collector Power Dissipation Derating(Ta≥25°C) (1 Circuit)	∆P_C /°C	-1.5	-1.0	mW /°C
	Junction Temperature	Tj	125		°C
Operating Temperature Range		Topr	−55 to 100		°C
Storage Temperature Range		Tstg	−55 to 125		°C
Lead Soldering Temperature		Tsol	260 (10s)		°C
Total Package Power Dissipation (1 Circuit)		P_T	200	170	mW
Total Package Power Dissipation Derating (Ta≥25°C) (1 Circuit)		∆P_T /°C	-2.0	-1.7	mW /°C
Isolation Voltage (Note 2)		BV_S	2500(AC,1min,R.H.≤60%)		Vrms

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).

(Note 1) Pulse width ≤ 100μs, frequency 100Hz

(Note 2) AC, 1 minute, R.H.≤60%,Device considered a two terminal device : LED side pins shorted together and DETECTOR side pins shorted together.
