Product Details:
Payment & Shipping Terms:
|
Input Offset Voltage: | 1.7 MV | Input Offset Voltage Average Drift: | 5 µV/˚C |
---|---|---|---|
Input Bias Current: | 10 NA | Input Offset Current: | 5 NA |
Saturation Voltage: | 200 MV | Output Sink Current: | 23 MA |
High Light: | electronic integrated circuit,linear integrated circuits |

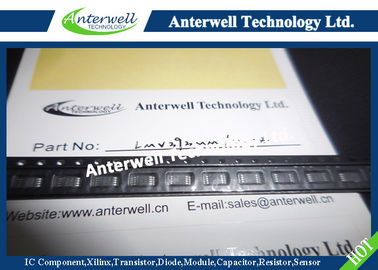

LMV331 Single / LMV393 Dual / LMV339 Quad
General Purpose, Low Voltage, TinyPack Comparators
General Description
The LMV393 and LMV339 are low voltage (2.7-5V) versions of the dual and quad comparators, LM393/339, which are specified at 5-30V. The LMV331 is the single version, which is available in space saving SC70-5 and SOT23-5 packages. SC70-5 is approximately half the size of SOT23-5.
The LMV393 is available in 8-pin SOIC and 8-pin MSOP. The LMV339 is available in 14-pin SOIC and 14-pin TSSOP.
The LMV331/393/339 is the most cost-effective solution where space, low voltage, low power and price are the primary specification in circuit design for portable consumer products. They offer specifications that meet or exceed the familiar LM393/339 at a fraction of the supply current.
The chips are built with National’s advanced Submicron Silicon-Gate BiCMOS process. The LMV331/393/339 have bipolar input and output stages for improved noise performance.
Features
(For 5V Supply, Typical Unless Otherwise Noted)
• Space Saving SC70-5 Package (2.0 x 2.1 x 1.0 mm)
• Space Saving SOT23-5 Package (3.00 x 3.01 x 1.43 mm)
• Guaranteed 2.7V and 5V Performance
• Industrial Temperature Range −40˚C to +85˚C
• Low Supply Current 60µA/Channel
• Input Common Mode Voltage Range Includes Ground
• Low Output Saturation Voltage 200 mV
Applications
• Mobile Communications
• Notebooks and PDA’s
• Battery Powered Electronics
• General Purpose Portable Device
• General Purpose Low Voltage Applications
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
ESD Tolerance (Note 2)
Human Body Model LMV331/ 393/ 339 800V
Machine Model LMV331/339/393 120V
Differential Input Voltage ± Supply Voltage
Voltage on any pin (referred to V− pin) 5.5V
Soldering Information
Infrared or Convection (20 sec) 235˚C
Storage Temp. Range −65˚C to +150˚C
Junction Temperature (Note 3) 150˚C
Operating Ratings(Note 1)
Supply Voltage 2.7V to 5.0V
Temperature Range LMV393, LMV339, LMV331 −40˚C ≤ TJ ≤ +85˚C
Thermal Resistance (θJA)
M Package, 8-pin Surface Mount 190˚C/W
M Package, 14-pin Surface Mount 145˚C/W
MTC Package, 14-pin TSSOP 155˚C/W
MAA05 Package, 5-pin SC70-5 478˚C/W
M05A Package 5 -pin SOT23-5 265˚C/W
MM Package, 8-pin Mini Surface Mount 235˚C/W
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is intended to be functional, but specific performance is not guaranteed. For guaranteed specifications and the test conditions, see the Electrical characteristics.
Note 2: : Human body model, 1.5kΩ in series with 100 pF. Machine model, 200Ω in series with 100 pF.
Note 3: The maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any ambient temperature is PD = (TJ(max) - TA)/θJA. All numbers apply for packages soldered directly into a PC board.
Connection Diagrams
