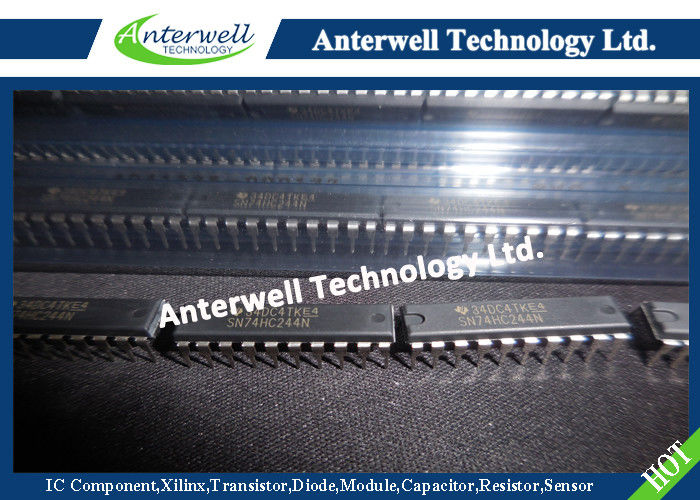

Sn74hc244n Ic Electronic Components Octal Buffers And Line Drivers Ic Integrated Circuit

SN54HC244, SN74HC244

OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS

• Wide Operating Voltage Range of 2 V to 6 V
• High-Current Outputs Drive Up To 15 LSTTL Loads
• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
• Low Power Consumption, 80-µA Max ICC
• Typical t_pd = 11 ns
• ±6-mA Output Drive at 5 V
• Low Input Current of 1 µA Max

description

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The ’HC244 devices are organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†

Supply voltage range, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 7 V

Input clamp current, I_IK (V_I < 0 or V_I > V_CC) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA

Output clamp current, I_OK (V_O < 0 or V_O > V_CC) (see Note 1) . . . . . . . . . . . . . . . . . . . . .  ±20 mA

Continuous output current, I_O (V_O = 0 to V_CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±35 mA

Continuous current through V_CC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±70 mA

Package thermal impedance, θ_JA (see Note 2): DB package  . . . . . . . . . . . . . . . . . . . . . . 70°C/W

                                                                          DW package  . . . . . . . . . . . . . . . . . . . . . . 58°C/W

                                                                          N package  . . . . . . . . . . . . . . . . . . . . . . . . 69°C/W

                                                                          NS package  . . . . . . . . . . . . . . . . . . . . . . . 60°C/W

                                                                          PW package  . . . . . . . . . . . . . . . . . . . . . .  83°C/W

Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to 150°C

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES:

1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

2. The package thermal impedance is calculated in accordance with JESD 51-7.

logic diagram (positive logic)
