TIL117M Electronics Components Integrated Circuit Chip Program Memory

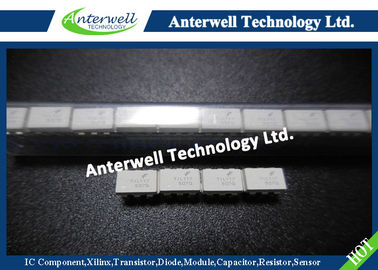

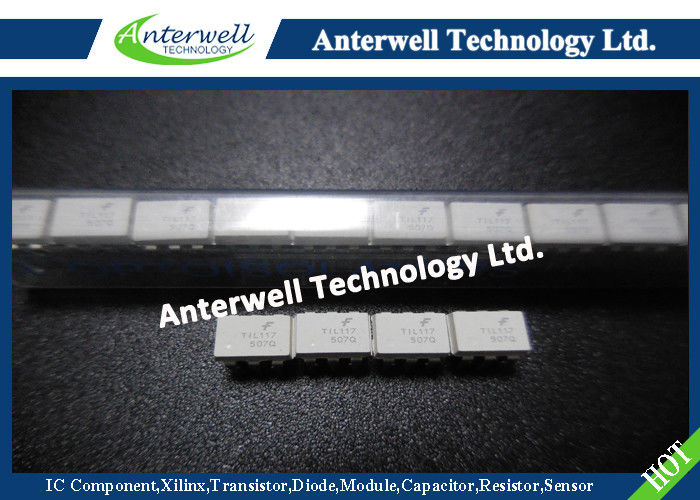

: Large Image : TIL117M Electronics Components Integrated Circuit Chip Program Memory

Product Details:

Place of Origin:	Thailand
Brand Name:	FAIRCHILD
Certification:	Original Factory Pack
Model Number:	TIL117M

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	tube
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5120PCS

Contact Now

Detailed Product Description

Temperature Range:	-40 To +150 °C	Payment Term:	T/T, Paypal, Western Union
Voltage:	7V	Current:	1.5A
Package:	DIP-6	Factory Package:	Tube
High Light:	electronic integrated circuit , linear integrated circuits

TIL111M, TIL117M, MOC8100M

General Purpose 6-Pin Phototransistor Optocouplers

Features

■ UL recognized (File # E90700)

■ VDE recognized (File #102497 for white package)

– Add option V (e.g., TIL111VM)

General Description

The MOC8100M, TIL111M and TIL117M optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package..

Applications

■ Power supply regulators

■ Digital logic inputs

■ Microprocessor inputs

■ Appliance sensor systems

■ Industrial controls

ABSOLUTE MAXIMUM RATINGS(1)

TSTG Storage Temperature All -40 to +150 °C

TOPR Operating Temperature All -40 to +100 °C

TSOL Lead Solder Temperature All 260 for 10 sec °C

PD Total Device Power Dissipation @ TA = 25°C

Derate above 25°C All 250 mW 2.94 mW/°C

EMITTER IF DC/Average Forward Input Current All 60 mA VR Reverse Input Voltage

TIL111M 3 V MOC8100M, TIL117M 6 IF(pk)

Forward Current – Peak (300µs, 2% Duty Cycle) All 3 A PD

LED Power Dissipation @ TA = 25 °C Derate above 25°C

All 120 mW 1.41 mW/°C
