TDA7052A Electronics Components Integrated Circuit Chip Program Memory

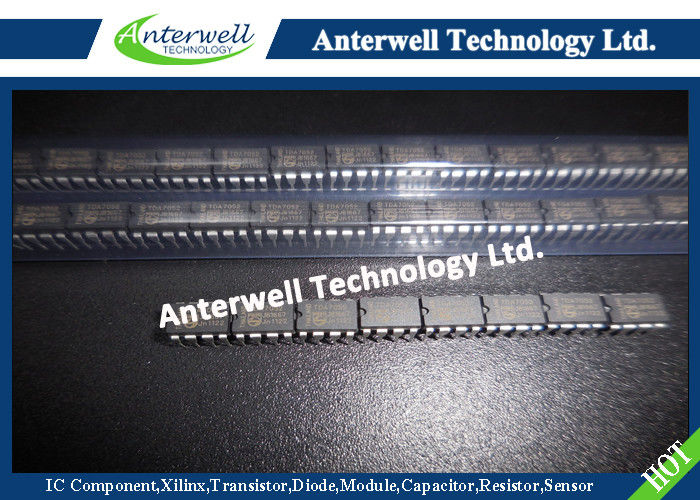

: Large Image : TDA7052A Electronics Components Integrated Circuit Chip Program Memory

Product Details:

Place of Origin:	Thailand
Brand Name:	NXP
Certification:	Original Factory Pack
Model Number:	TDA7052A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	tube
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	51120PCS

Contact Now

Detailed Product Description

Temperature Range:	–55°C To +150°C	Payment Term:	T/T, Paypal, Western Union
Voltage:	18 V	Current:	1.5A
Package:	DIP-8	Factory Package:	Tube
High Light:	chip in electronics , integrated components

1 W BTL mono audio amplifier with DC volume control

Features

• DC volume control

• Few external components

• Mute mode

• Thermal protection

• Short-circuit proof

• No switch-on and off clicks

• Good overall stability

• Low power consumption

• Low HF radiation

• ESD protected on all pins

General Description

The TDA7052A/AT are mono BTL output amplifiers with DC volume control.

They are designed for use in TV and monitors, but also suitable for battery-fed portable recorders and radios.

Missing Current Limiter (MCL)

A MCL protection circuit is built-in.

The MCL circuit is activated when the difference in current between the output terminal of each amplifier exceeds 100 mA (typical 300 mA).

This level of 100 mA allows for headphone applications (single-ended).

ABSOLUTE MAXIMUM RATINGS(1)

Output sustaining voltage VCE (SUS) −0.5 to 50 V

Output current IOUT 500 mA/ch

Input voltage VIN (Note 1) −0.5 to 30 V

Input current IIN (Note 2) 25 mA

Clamp diode reverse voltage VR 50 V

Clamp diode forward current IF 500 mA

APG 1.47 Power dissipation AFG PD 0.625 (Note 3) W

Operating temperature Topr −40 to 85 °C

Storage temperature Tstg −55 to 150 °C
