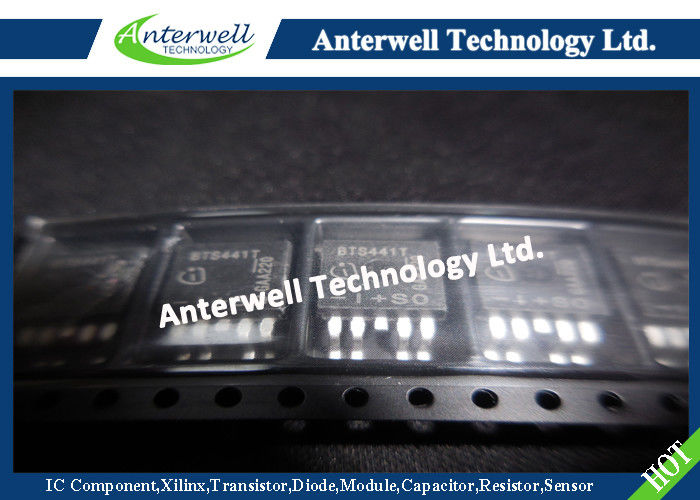

BTS441T Electronic Integrated Circuit Chips Smart Highside Power Switch One Channel 20mΩ

: Large Image : BTS441T Electronic Integrated Circuit Chips Smart Highside Power Switch One Channel 20mΩ

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BTS441T

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	12000pcs

Contact Now

Detailed Product Description

Supply Voltage:	43 V	Supply Voltage For Full Short Circuit Protection:	34 V
Load Dump Protection:	60 V	Operating Temperature:	-40 ...+150 °C
Storage Temperature:	-55 ...+150 °C	Power Dissipation (DC):	125 W
High Light:	electronic integrated circuit , linear integrated circuits

BTS441T

Smart Highside Power Switch One Channel: 20mΩ

Product Summary

On-state Resistance	R_ON	20mΩ
Operating Voltage	V_bb(on)	4.75 ... 41V
Nominal load current	I_L(ISO)	21A
Current limitation	I_L(lim)	65A

Package

BTS441T Electronic Integrated Circuit Chips Smart Highside Power Switch One Channel 20mΩ

General Description

• N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS® technology.

• Providing embedded protective functions.

Application

• µC compatible power switch for 5V, 12 V and 24 V DC applications

• All types of resistive, inductive and capacitve loads

• Most suitable for loads with high inrush currents, so as lamps

• Replaces electromechanical relays, fuses and discrete circuits

Basic Funktions

• Very low standby current

• Optimized static electromagnetic compatibility (EMC)

• µC and CMOS compatible

• Fast demagnetization of inductive loads

• Stable behaviour at undervoltage

Protection Functions

• Short circuit protection

• Current limitation

• Overload protection

• Thermal shutdown

• Overvoltage protection (including load dump) with external GND-resistor

• Reverse battery protection with external GND-resistor

• Loss of ground and loss of Vbb protection

• Electrostatic discharge (ESD) protection

BTS441T Electronic Integrated Circuit Chips Smart Highside Power Switch One Channel 20mΩ

Functional diagram

BTS441T Electronic Integrated Circuit Chips Smart Highside Power Switch One Channel 20mΩ

Pin configuration

BTS441T Electronic Integrated Circuit Chips Smart Highside Power Switch One Channel 20mΩ

Pin Definitions and Functions

Pin	Symbol	Function
1	GND	Logic ground
2	IN	Input, activates the power switch in case of logical high signal
3	Vbb	Positive power supply voltage The tab is shorted to pin 3
4	N.C.	Not connected
5	OUT	Output to the load
Tab	Vbb	Positive power supply voltage The tab is shorted to pin 3
