BA5406 Stereo Speaker Amplifier ic chip / linear integrated circuits

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

BA5406 Stereo Speaker Amplifier ic chip / linear integrated circuits

China BA5406 Stereo Speaker Amplifier ic chip / linear integrated circuits supplier

Large Image :  BA5406 Stereo Speaker Amplifier ic chip / linear integrated circuits

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: BA5406

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8200pcs
Contact Now
Detailed Product Description
Supply Voltage: 5~15 V Power Dissipation: 20 W
Quiescent Current: 40 MA Closed Loop Voltage Gain: 46 DB
Output Noise Voltage: 0.6 MVrms Package: SIP-M12
High Light:

electronic integrated circuit

,

linear integrated circuits



Speaker / Headphone Amplifier Series

5W+5W Stereo Speaker Amplifiers

BA5406, BA5417



Description

The BA5406/BA5417 is a dual OTL monolithic power IC with two built-in, high output speaker amplifier circuits.

High output of 5W×2 can be produced when VCC=12 V and RL=3Ω, and 2.8 W×2 when VCC=9V and RL=3Ω.

The BA5406, which uses a high allowable power dissipation package, has a simple heatsink design.

The BA5417 not only exceeds basic characteristics, but also has a built-in soft clip circuit, thermal shutdown and standby circuits.



Features



BA5406

1) Good low voltage characteristics (Operation from Vcc=5 V)

2) Ripple filter (6pin) also can be used as muting pin (Make 6pin GND potential)

3) Small thermal resistance package and simple heatsink design



BA5417

1) Small pop noise when standby switches ON/OFF

2) Built-in circuit to prevent ripple addition when motor starts

3) Built-in thermal shutdown circuit

4) Built-in standby switch circuit

5) Built-in soft clip circuit



Applications

Stereo radio cassette players, mini-audio systems, LCD TVs, etc.



Absolute maximum ratings (Ta=25°C)

Parameter Symbol Limits Unit
BA5406 BA5417
Supply voltage Vcc 18 *1 20 * 1 V
Power dissipation Pd 20 * 2 15 * 3 W
Operating temperature Topr -20~+75 -20~+75 °C
Storage temperature Tstg -30~+125 -55~+150 °C

*1 When no signal

*2 Back metal temperature 75°C

*3 Ta=75°C (Using infinite heatsink)



BA5406  SIP-M12

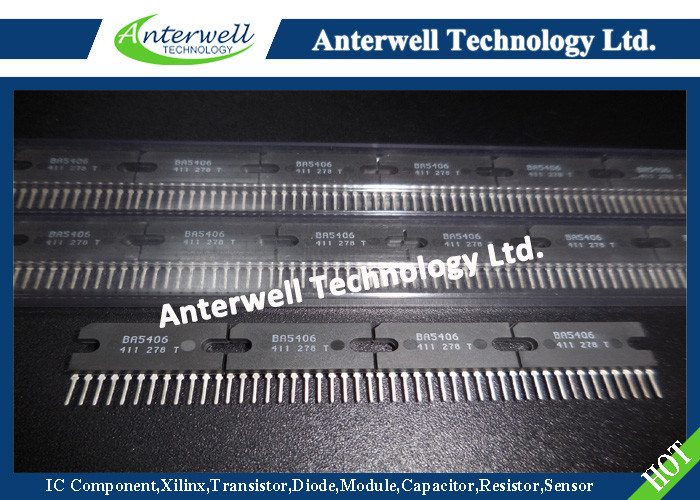

BA5406 Stereo Speaker Amplifier ic chip / linear integrated circuits



BA5417   HSIP15

BA5406 Stereo Speaker Amplifier ic chip / linear integrated circuits









Stock Offer (Hot Sell)

Part No. Quantity Brand D/C Package
WPCM450RAOBX 560 NUVOTON 04+ BGA
PN5472A2EV/C20801 1295 NXP 13+ BGA
RT3352F 1418 RALINK 13+ BGA
RT5350F 2237 RALINK 16+ BGA
SMP8673A00-CBE3 482 SIGMA 12+ BGA
SMP8653A-CBE3 509 SIGMADE 13+ BGA
SMP8653AD-CBE3 485 SIGMADESI 16+ BGA
SIS756 1484 SIS 14+ BGA
SIS962LUA 1538 SIS 04+ BGA
SIS968 1019 SIS 16+ BGA
SKY77324-12B 8364 SKYWORKS 16+ BGA
SSD1961G40 2810 SOLOMON 08+ BGA
S29GL064N90FFIS20 2192 SPANSION 10+ BGA
STA2500DTR 1490 ST 09+ BGA
STDP9320-BB 443 ST 15+ BGA
STI7141BNWB 599 ST 11+ BGA
USBULC6-2F3 10764 ST 16+ BGA
TC2-1T 2300 MINI 10+ AT244
1206L012WR 12000 LITTELFUS 15+ 1206
