Product Details:
Payment & Shipping Terms:
|
Supply Voltage: | 6 V | Input Voltage: | GND To Vs + 0.3 V |
---|---|---|---|
ESD (Human Body Model): | 2000 V | Storage Temperature: | −65°C To +150°C |
Operating Temperature: | −40°C To +125°C | Junction Temperature: | −65°C To +150°C |
High Light: | electronic integrated circuit,linear integrated circuits |

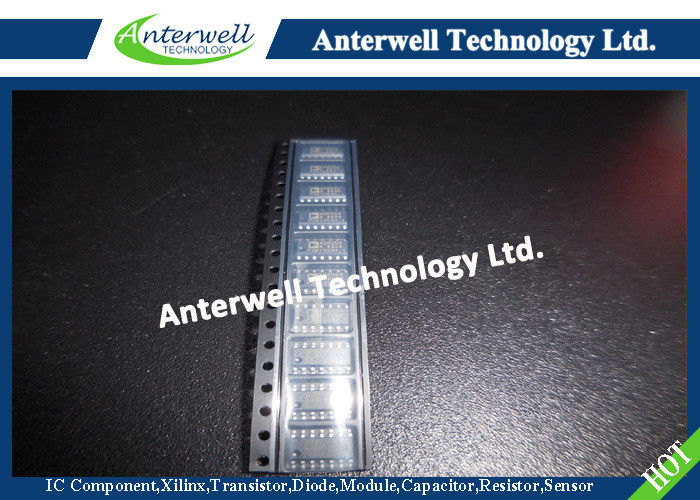

Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers
AD8551/AD8552/AD8554
FEATURES
APPLICATIONS
GENERAL DESCRIPTION
This family of amplifiers has ultralow offset, drift, and bias current. The AD8551, AD8552, and AD8554 are single, dual, and quad amplifiers featuring rail-to-rail input and output swings. All are guaranteed to operate from 2.7 V to 5 V with a single supply.
The AD855x family provides the benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc. topology, these new zero-drift amplifiers combine low cost with high accuracy. No external capacitors are required.
With an offset voltage of only 1 μV and drift of 0.005 μV/°C, the AD855x are perfectly suited for applications in which error sources cannot be tolerated. Temperature, position and pressure sensors, medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range. The rail-to-rail input and output swings provided by the AD855x family make both high-side and low-side sensing easy.
The AD855x family is specified for the extended industrial/auto motive temperature range (−40°C to +125°C). The AD8551 single amplifier is available in 8-lead MSOP and 8-lead narrow SOIC packages. The AD8552 dual amplifier is available in 8-lead narrow SOIC and 8-lead TSSOP surface-mount packages. The AD8554 quad is available in 14-lead narrow SOIC and 14-lead TSSOP packages.
ABSOLUTE MAXIMUM RATINGS
Parameter | Rating |
---|---|
Supply Voltage | 6 V |
Input Voltage | GND to VS + 0.3 V |
Differential Input Voltage1 | ±5.0 V |
ESD (Human Body Model) | 2000 V |
Output Short-Circuit Duration to GND | Indefinite |
Storage Temperature Range | −65°C to +150°C |
Operating Temperature Range | −40°C to +125°C |
Junction Temperature Range | −65°C to +150°C |
Lead Temperature Range (Soldering, 60 sec) | 300°C |
1 Differential input voltage is limited to ±5.0 V or the supply voltage, whichever is less.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability
PIN CONFIGURATIONS
