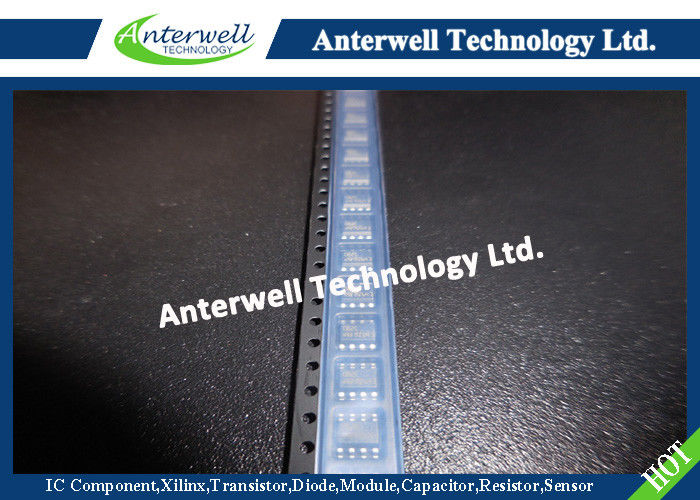

TL082 TL082A TL082B
General purpose JFET dual operational amplifiers
Features
■ Wide common-mode (up to VCC+) and differential voltage range
■ Low input bias and offset current
■ Output short-circuit protection
■ High input impedance JFET input stage
■ Internal frequency compensation
■ Latch up free operation
■ High slew rate: 16 V/µs (typical)
Description
The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit.
The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
Absolute maximum ratings
Symbol | Parameter | TL082I, AI, BI | TL082C, AC, BC | Unit |
VCC | Supply voltage (1) | ±18 | V | |
Vin | Input voltage (2) | ±15 | V | |
Vid | Differential input voltage (3) | ±30 | V | |
Ptot | Power dissipation | 680 | mW | |
Rthja |
Thermal resistance junction to ambient(4) SO-8 DIP8 TSSOP8 |
125 85 120 |
°C/W | |
Rthjc |
Thermal resistance junction to case SO-8 DIP8 TSSOP8 |
40 41 37 |
°C/W | |
Output short-circuit duration (5) | Infinite | |||
Tstg | Storage temperature range | -65 to +150 | °C | |
ESD | HBM: human body model(6) | 1 | kV | |
MM: machine model(7) | 200 | V | ||
CDM: charged device model(8) | 1500 | V |
1. All voltage values, except differential voltage, are with respect to the zero reference level (ground) of the supply voltages where the zero reference level is the midpoint between VCC+ and VCC- .
2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, whichever is less.
3. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
4. Short-circuits can cause excessive heating. Destructive dissipation can result from simultaneous shortcircuit on all amplifiers.
5. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded
6. Human body model: 100 pF discharged through a 1.5 kΩ resistor between two pins of the device, done for all couples of pin combinations with other pins floating.
7. Machine model: a 200 pF cap is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω), done for all couples of pin combinations with other pins floating.
8. Charged device model: all pins plus package are charged together to the specified voltage and then discharged directly to the ground.
