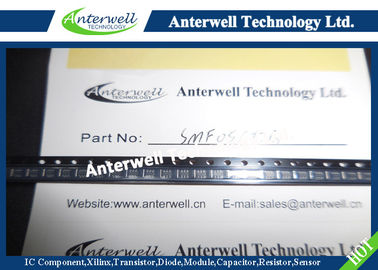

SMF05CT2G Electronic IC Chips 5-Line Transient Voltage Suppressor Array

SMF05C, SMF12C, SMF15C, SMF24C

5−Line Transient Voltage Suppressor Array

This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package.

Features

• Protects up to 5−Line in a Single SC−88 Package

• Peak Power Dissipation − 100 W (8 x 20
s Waveform)

• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model

  and Class C (Exceeding 400 V) per Machine Model.

• Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)

• Flammability Rating of UL 94 V−0

• Pb−Free Package is Available

Applications

• Hand−Held Portable Applications

• Networking and Telecom

• Automotive Electronics

• Serial and Parallel Ports

• Notebooks, Desktops, Servers

MAXIMUM RATINGS (T_J=25°C unless otherwise specified)

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

1. Nonrepetitive current pulse per Figure 3.

PACKAGE DIMENSIONS
