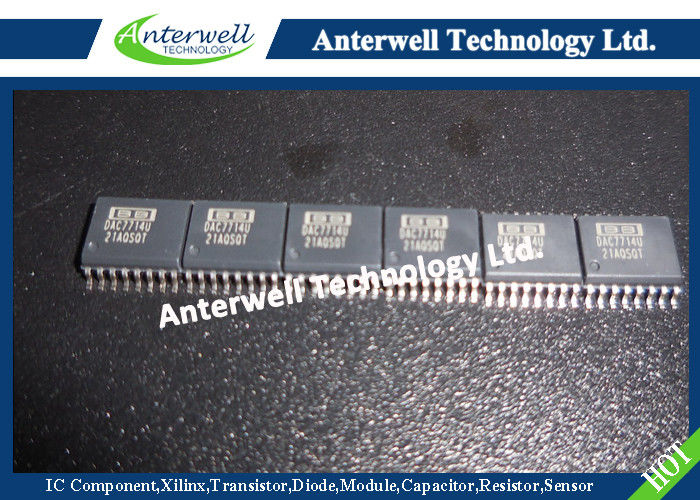

DAC7714U Electronics Components Chip IC Electronics Rectifier Diode
Quad, Serial Input, 12-Bit, Voltage Output DIGITAL-TO-ANALOG CONVERTER
FEATURES
● LOW POWER: 250mW (max)
● UNIPOLAR OR BIPOLAR OPERATION
● SETTLING TIME: 10µs to 0.012%
● 12-BIT LINEARITY AND MONOTONICITY: –40°C to +85°C
● USER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALE
● SECOND-SOURCE for DAC8420
● SMALL SO-16 PACKAGE
APPLICATIONS
● ATE PIN ELECTRONICS
● PROCESS CONTROL
● CLOSED-LOOP SERVO-CONTROL
● MOTOR CONTROL
● DATA ACQUISITION SYSTEMS
DESCRIPTION
The DAC7714 is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic performance over the –40°C to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zeroscale (000H), selectable via the RESETSEL pin.
The device can be powered from a single +15V supply or from dual +15V and –15V supplies. Low power and small size makes the DAC7714 ideal for process control, data acquisition systems, and closed-loop servo-control.
The device is available in a SO-16 package, and is guaranteed over the –40°C to +85°C temperature range.
ABSOLUTE MAXIMUM RATINGS(1)
VCC to VSS ........................................................................... –0.3V to +32V VCC to GND ......................................................................... –0.3V to +16V VSS to GND ......................................................................... +0.3V to –16V VREFH to GND ....................................................................... –9V to +11V VREFL to GND (VSS = –15V) ................................................. –11V to +9V VREFL to GND (VSS = 0V) .................................................... –0.3V to +9V VREFH to VREFL ....................................................................... –1V to +22V Digital Input Voltage to GND .............................................. –0.3V to 5.8V Digital Output Voltage to GND ............................................ –0.3V to 5.8V Maximum Junction Temperature ................................................... +150°C Operating Temperature Range ........................................ –40°C to +85°C Storage Temperature Range ......................................... –65°C to +150°C Lead Temperature (soldering, 10s) ............................................... +300°C |
