Product Details:
Payment & Shipping Terms:
|
Supply Voltage: | 2.7V To 5.5V | Input Offset Voltage: | 1.7 MV |
---|---|---|---|
Input Offset Voltage Average Drift: | 5 µV/˚C | Input Bias Current: | 11 NA |
Storage Temp.: | −65˚C To 150˚C | Junction Temperature: | 150˚C |
High Light: | electronic integrated circuit,linear integrated circuits |

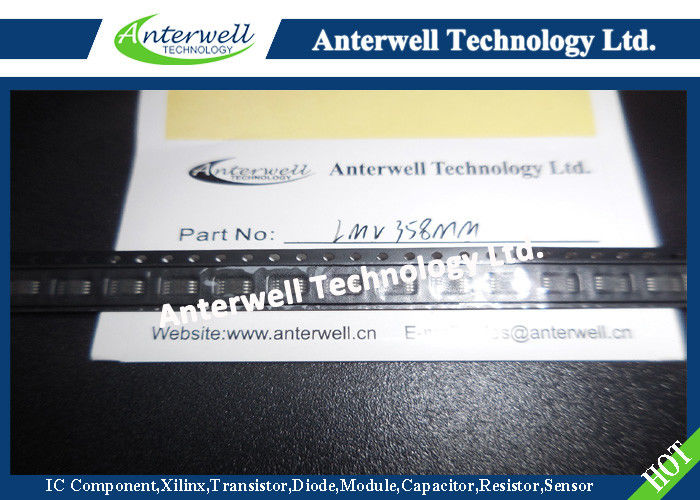

LMV321/LMV358/LMV324 Single/Dual/Quad
General Purpose, Low Voltage, Rail-to-Rail Output Operational Amplifiers
General Description
The LMV358/324 are low voltage (2.7–5.5V) versions of the dual and quad commodity op amps, LM358/324, which currently operate at 5–30V. The LMV321 is the single version. The LMV321/358/324 are the most cost effective solutions for the applications where low voltage operation, space saving and low price are needed. They offer specifications that meet or exceed the familiar LM358/324. The LMV321/358/ 324 have rail-to-rail output swing capability and the input common-mode voltage range includes ground. They all exhibit excellent speed-power ratio, achieving 1MHz of bandwidth and 1V/µs of slew rate with low supply current.
The LMV321 is available in space saving SC70-5, which is approximately half the size of SOT23-5. The small package saves space on pc boards, and enables the design of small portable electronic devices. It also allows the designer to place the device closer to the signal source to reduce noise pickup and increase signal integrity.
The chips are built with National’s advanced submicron silicon-gate BiCMOS process. The LMV321/358/324 have bipolar input and output stages for improved noise performance and higher output current drive.
Features
(For V+ = 5V and V− = 0V, Typical Unless Otherwise Noted)
Applications
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
ESD Tolerance (Note 2)
Machine Model 100V
Human Body Model LMV358/324 2000V
LMV321 900V
Differential Input Voltage ± Supply Voltage
Supply Voltage (V+ –V− ) 5.5V
Output Short Circuit to V + (Note 3)
Output Short Circuit to V − (Note 4)
Soldering Information
Infrared or Convection (20 sec) 235˚C
Storage Temp. Range −65˚C to 150˚C
Junction Temperature(Note 5) 150˚C
Operating Ratings (Note 1)
Supply Voltage 2.7V to 5.5V
Temperature Range
LMV321, LMV358, LMV324 −40˚C to +85˚C
Thermal Resistance (θJA)(Note 10)
5-pin SC70-5 478˚C/W
5-pin SOT23-5 265˚C/W
8-Pin SOIC 190˚C/W
8-Pin MSOP 235˚C/W
14-Pin SOIC 145˚C/W
14-Pin TSSOP 155˚C/W
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is intended to be functional, but specific performance is not guaranteed. For guaranteed specifications and the test conditions, see the Electrical Characteristics.
Note 2: Human body model, 1.5kΩ in series with 100pF. Machine model, 0Ω in series with 200pF.
Note 3: Shorting output to V+ will adversely affect reliability.
Note 4: Shorting output to V- will adversely affect reliability.
Note 5: The maximum power dissipation is a function of TJ(MAX), θJA, and TA. The maximum allowable power dissipation at any ambient temperature is PD = (TJ(MAX)–TA)/θJA. All numbers apply for packages soldered directly into a PC board.
Note 6: Typical values represent the most likely parametric norm.
Note 7: All limits are guaranteed by testing or statistical analysis.
Note 8: RL is connected to V- . The output voltage is 0.5V ≤ VO ≤ 4.5V.
Note 9: Connected as voltage follower with 3V step input. Number specified is the slower of the positive and negative slew rates.
Note 10: All numbers are typical, and apply for packages soldered directly onto a PC board in still air.
