74HC08D Electronic IC Chips integrated components Quad 2 - input AND gate

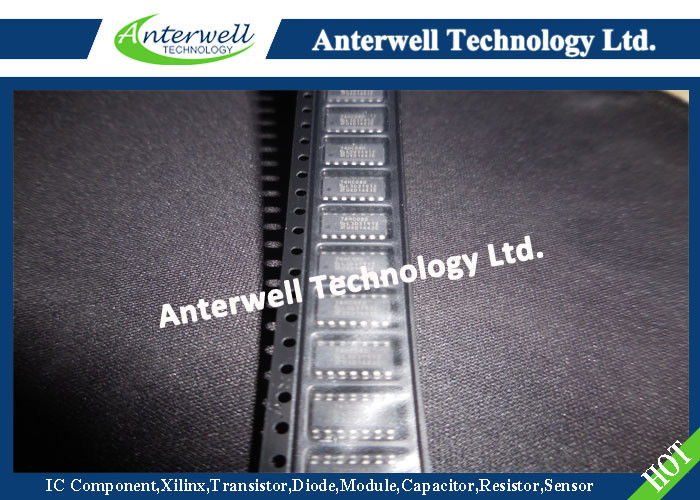

: Large Image : 74HC08D Electronic IC Chips integrated components Quad 2 - input AND gate

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	74HC08D

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7500pcs

Contact Now

Detailed Product Description

Supply Voltage:	−0.5 To +7.0 V	Input Diode Current:	±20 MA
Output Diode Current:	±20 MA	Output Source Or Sink Current:	±25 MA
VCC Or GND Current:	±50 MA	Storage Temperature:	−65 To +150 °C
High Light:	electronic integrated circuit , linear integrated circuits

Quad 2-input AND gate 74HC08; 74HCT08

FEATURES

• Complies with JEDEC standard no. 8-1A

• ESD protection:

HBM EIA/JESD22-A114-A exceeds 2000 V

MM EIA/JESD22-A115-A exceeds 200 V.

• Specified from −40 to +85 °C and −40 to +125 °C.

DESCRIPTION

The 74HC/HCT08 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT08 provide the 2-input AND function.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 60134); voltages are referenced to GND (ground = 0 V).

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CC	supply voltage		−0.5	+7.0	V
I_IK	input diode current	V_I < −0.5 V or V_I > V_CC + 0.5 V	−	±20	mA
I_OK	output diode current	V_O < −0.5 V or V_O > V_CC + 0.5 V	−	±20	mA
I_O	output source or sink current	−0.5 V < V_O < V_CC + 0.5 V	−	±25	mA
I_CC, I_GND	V_CC or GND current		−	±50	mA
T_stg	storage temperature		−	+150	°C
P_tot	power dissipation DIP14 package other packages	Tamb = −40 to +125 °C; note 1 Tamb = −40 to +125 °C; note 2	− −	750 500	mW mW

Notes

1. For DIP14 packages: above 70 °C derate linearly with 12 mW/K.

2. For SO14 packages: above 70 °C derate linearly with 8 mW/K.

For SSOP14 and TSSOP14 packages: above 60 °C derate linearly with 5.5 mW/K.

For DHVQFN14 packages: above 60 °C derate linearly with 4.5 mW/K.
