74HCT1G125GW Electronic IC Chips linear integrated circuits line driver

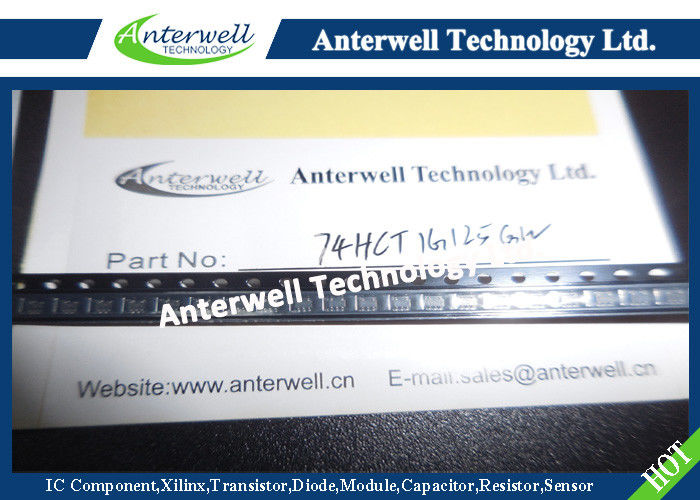

: Large Image : 74HCT1G125GW Electronic IC Chips linear integrated circuits line driver

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	74HCT1G125GW

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7500pcs

Contact Now

Detailed Product Description

Supply Voltage:	−0.5 To +7.0 V	Input Diode Current:	±20 MA
Output Diode Current:	±20 MA	Output Source Or Sink Current:	±12.5 MA
Storage Temperature:	−65 To +150 °C	Power Dissipation Per Package:	200 MW
High Light:	electronic integrated circuit , linear integrated circuits

Stock Offer (Hot Sell)

Part No.

Quantity

Brand

D/C

Package

SN74HC541PW	39000	TI	07+	TSSOP-20
SN74HC541PWR	87000	TI	04+	TSSOP-20
SN74HC573AN	9373	TI	16+	DIP-20
SN74HC574N	9444	TI	16+	SOP-20
SN74HC590AN	10493	TI	15+	DIP-16
SN74HC595DWR	17609	TI	02+	SOP-16
SN74LS04N	11203	TI	15+	SOP-14
SN74LS05N	7457	TI	95+	SOP-14
SN74LS07DR	9255	TI	16+	SOP-14
SN74LS07N	14682	TI	16+	DIP-14
SN74LS132N	7428	TI	14+	DIP-14
SN74LS138DR	8860	TI	16+	SOP-16
SN74LS138N	4238	TI	15+	DIP-16
SN74LS145DR	11984	TI	13+	SOP-16
SN74LS148DR	16244	TI	93+	SOP-16
SN74LS153N	6801	TI	84+	DIP-16
SN74LS194N	5146	TI	15+	DIP-16
SN74LS240DWR	8481	TI	16+	SOP-20
SN74LS247N	10272	TI	12+	DIP-16
SN74LS279ADR	4087	TI	10+	SOP-16
SN74LS373N	11274	TI	15+	DIP-20
SN74LS374N	10564	TI	14+	DIP-20
SN74LS76AN	6267	TI	16+	DIP-16
SN74LS83N	10343	TI	13+	DIP-16
SN74LS86AN	16315	TI	14+	DIP-14
SN74LV244ADWR	100000	TI	13+	SOP-20
SN74LV245ADWR	23344	TI	12+	SOP-20
SN74LV4052ADR	35000	TI	16+	SOP-16
SN74LVC04ADR	9000	TI	16+	SOP-14
SN74LVC07ADR	64000	TI	16+	SOP-14

74HC1G125; 74HCT1G125

Bus buffer/line drivers; 3-state

FEATURES

• Wide supply voltage range from 2.0 to 6.0 V

• Symmetrical output impedance

• High noise immunity

• Low power dissipation

• Balanced propagation delays

• Very small 5 pins package

• Output capability: bus driver.

DESCRIPTION

The 74HC1G/HCT1G125 is a high-speed Si-gate CMOS device.

The 74HC1G/HCT1G125 provides one non-inverting buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input pin (OE). A HIGH at pin OE causes the output as assume a high-impedance OFF-state.

The bus driver output currents are equal compared to the 74HC/HCT125.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 60134); voltages are referenced to GND (ground = 0 V).

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CC	supply voltage		−0.5	+7.0	V
I_IK	input diode current	V_I < −0.5 V or V_I > V_CC + 0.5 V; note 1	−	±20	mA
I_OK	output diode current	V_O < −0.5 V or V_O > V_CC + 0.5 V; note 1	−	±20	mA
I_O	output source or sink current	−0.5 V < V_O < V_CC + 0.5 V; note 1	−	±12.5	mA
I_CC	V_CC or GND current	note 1	−	±25	mA
T_stg	storage temperature		−65	+150	°C
P_D	power dissipation per package	for temperature range from −40 to +125 °C; note 2	−	200	mW
