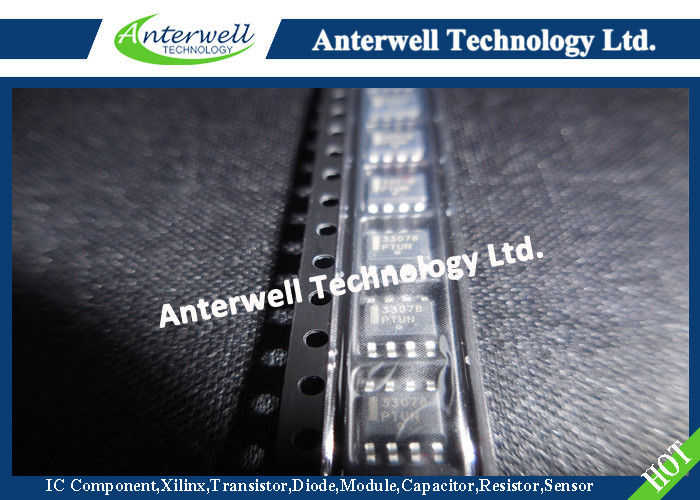

MC33078DT Electronic IC Chips Low noise dual operational amplifier

: Large Image : MC33078DT Electronic IC Chips Low noise dual operational amplifier

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	MC33078DT

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7900pcs

Contact Now

Detailed Product Description

Supply Voltage:	±18 Or +36 V	Differential Input Voltage:	±30 V
Input Voltage:	±15 V	Junction Temperature:	+150 °C
Storage Temperature:	-65 To +150 °C	Operating Free-air Temperature:	-40 To 105 °C
High Light:	electronic integrated circuit , linear integrated circuits

Stock Offer (Hot Sell)

Part No.

Quantity

Brand

D/C

Package

OB2263AP	97000	OB	15+	DIP-8
OB2530PAP	8521	OB	16+	DIP-8
OP177GP	5862	AD	13+	DIP-8
OP184ESZ	3919	AD	16+	SOP-8
OP291GS	8800	AD	13+	SOP-8
OP747ARUZ	3870	AD	13+	TSSOP-14
OP747ARZ	3941	AD	16+	SOP-14
OPA129UB	2159	TI	14+	SOP-8
OPA2134UA/2K5	5145	TI	16+	SOP-8
OPA2227U/2K5	3086	TI	15+	SOP-8
OPA2227UA	7606	TI	15+	SOP-8
OPA2335AIDGKT	8172	TI	10+	MSOP-8
OPA2344UA/2K5	3924	TI	11+	SOP-8
OPA2350UA/2K5	4039	TI	13+	SOP-8
OPA2365AIDR	5089	TI	16+	SOP-8
OPA333AIDBVR	9215	TI	13+	SOT23-5
OPA354AIDBVR	5349	TI	16+	SOT23-5
OPA4134UA	2802	TI	13+	SOP-14
OPA4227PA	2046	TI	15+	DIP-14
OPA4364AID	5518	TI	09+	SOP-14
OPA544T	2389	TI	15+	TO-220
OPA620SG	3821	BB	15+	DIP-8
OPA657N/250	1328	TI	16+	SOT23-5
OPA657NB	1629	TI	14+	SOT23-5
OPA657NB/250	2145	TI	12+	SOT23-5
OPA690IDBVR	4010	TI	15+	SOT23-6
OVM7690-R20A	2789	OMNIVISIO	11+	VGA-20
OZ9926AGW	8771	LITTELFUS	15+	SMB
P2300SALRP	80000	LITTELFUS	15+	SMB
P2808	22918	NIKOS	16+	SOP-8

MC33078

Low noise dual operational amplifier

Features

■ Low voltage noise: 4.5 nV/√Hz

■ High gain bandwidth product: 15 MHz

■ High slew rate: 7 V/µs

■ Low distortion: 0.002%

■ Large output voltage swing: +14.3 V / -14.6 V

■ Low input offset voltage

■ Excellent frequency stability

■ ESD protection 2 kV

■ Macromodel included in this specification

Description

The MC33078 is a monolithic dual operational amplifier particularly well suited for audio applications.

It offers low voltage noise (4.5 nV/√Hz) and high frequency performance (15 MHz gain bandwidth product, 7 V/µs slew rate).

In addition, the MC33078 has a very low distortion (0.002%) and excellent phase/gain margins.

The output stage allows a large output voltage swing and symmetrical source and sink currents.

Absolute maximum ratings (AMR)

Symbol	Parameter	Value	Unit
V_CC	Supply voltage	±18 or +36	V
V_id	Differential input voltage - note ⁽¹⁾	±30	V
V_i	Input voltage - see note 1	±15	V
	Output short circuit duration	Infinite	s
Tj	Junction temperature	+150	°C
T_stg	Storage temperature	-65 to +150	°C
R_thja	Thermal resistance junction to ambient^{(2) (3)} SO-8 DIP8	125 85	°C/W
R_thjc	Thermal resistance junction to case^{(2) (3)} SO-8 DIP8	40 41	°C/W
ESD	HBM: human body model⁽⁴⁾	2	kV
	MM: machine model⁽⁵⁾	200	V
	CDM: charged device model⁽⁶⁾	1.5	kV

1. Either or both input voltages must not exceed the magnitude of V_CC+ or V_CC- .

2. Short-circuits can cause excessive heating and destructive dissipation.

3. Rth are typical values.

4. Human body model: A 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5 kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating.

5. Machine model: A 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other pins are floating.

6. Charged device model: all pins and the package are charged together to the specified voltage and then discharged directly to the ground through only one pin. This is done for all pins.
