UCC2897A Electronic IC Chips microchips and integrated circuits

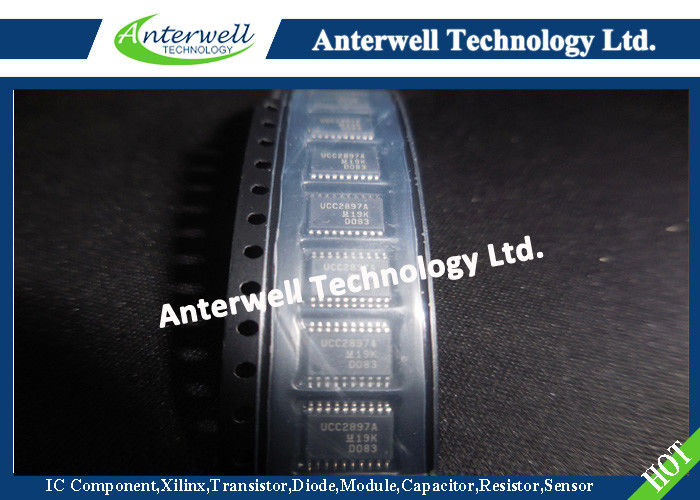

: Large Image : UCC2897A Electronic IC Chips microchips and integrated circuits

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	UCC2897A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7700pcs

Contact Now

Detailed Product Description

Line Input Voltage:	120 V	Supply Voltage:	16.5 V
Analog Inputs:	−0.3 To (VREF + 0.3) V	Operating Junction Temperature:	−55 To 150 °C
Storage Temperature:	−65 To 150 °C	Lead Temperature:	300 °C
High Light:	electronic integrated circuit , linear integrated circuits

Stock Offer (Hot Sell)

Part No.

Quantity

Brand

D/C

Package

M24512-WMN6TP	7937	ST	16+	SOP-8
M24C02-WBN6P	86000	ST	16+	DIP-8
M24C02-WMN6TP	59000	ST	13+	SOP-8
M24C04-RMN6TP	3696	ST	16+	SOP-8
M24C04-WBN6P	16899	ST	14+	DIP-8
M24C04-WMN6TP	122000	ST	10+	SOP-8
M24C08-WMN6TP	74000	ST	11+	SOP-8
M24C32-WMN6TP	73000	ST	13+	SOP-8
M24C64-WMN6TP	94000	ST	12+	SOP-8
M24M01-RMN6TP	3725	ST	16+	SOP-8
M25P128-VMF6TPB	3811	MICRON	15+	SOP-16
M25P40-VMN6TPB	19084	MICRON	16+	SOP-8
M27C512-10F1	4015	ST	14+	DIP
M27C512-12F1	9061	ST	16+	DIP
M28W320CT70N6	8447	STM	04+	TSOP-48
M29W160EB70N6E	5726	STM	12+	TSSOP-48
M29W640GB70NA6E	4271	ST	14+	TSSOP
M30620FCPFP#U5C	2021	RENESAS	08+	QFP
M35080-WMN3TP	3105	STM	16+	SOP-8
M41T00M6E	15100	ST	11+	SOP-8
M41T56M6F	18066	ST	11+	SOP-8
M41T81M6F	6308	ST	13+	SOP-8
M48T02-150PC1	3063	ST	16+	DIP-24
M48T35AV-10PC1	3160	ST	16+	DIP
M48T58-70PC1	1980	ST	14+	DIP
M48T86PC1	6681	ST	16+	DIP
M5218AL	10864	RENESAS	14+	ZIP-8
M54581P	6591	MIT	16+	DIP-18P
M57774	2065	MITSUBISH	13+	SMD
M5L8251AP-5	3953	MIT	13+	DIP-28

UCC2897A

ADVANCED CURRENT-MODE ACTIVE CLAMP PWM CONTROLLER

FEATURES

Low Output Jitter
“Soft Stop” shut down of MAIN and AUX
110-V Input Startup Function
Ideal for Active Clamp/Reset Forward, Flyback and Synchronous Rectifier Uses

Provides Complementary Auxiliary Driver with Programmable Deadtime (Turn-On Delay) between AUX and MAIN Switches
Peak Current-Mode Control with 0.5-V Cycle-by-Cycle Current Limiting
Hiccup Mode 0.75-V Current Limit
TrueDrive^TM 2-A Sink, 2-A Source Outputs

Trimmed Internal Bandgap Reference for Accurate Line UV and Line OV Threshold
Programmable Slope Compensation
High-Performance 1.0-MHz Synchronizable Oscillator with Internal Timing Capacitor
Precise Programmable Maximum Duty Cycle
PB-Free Lead Finish Package

APPLICATIONS

High-Efficiency DC/DC Power Supplies
Server Power, 48-V Telecom, Datacom, and 42-V Automotive Applications

DESCRIPTION

The UCC2897A PWM controller simplifies implementation of the various active clamp/reset and synchronous rectifier switching power topologies.

The UCC2897A is a peak current-mode, fixedfrequency, high-performance pulse width modulator. It includes the logic and the drive capability for the P-channel auxiliary switch along with a simple method of programming the critical delays for proper active clamp operation.

Features include an internal programmable slope compensation circuit, precise D_MAX limit, and a synchronizable oscillator with an internal timing capacitor. An accurate line monitoring function also programs the converter’s ON and OFF transitions with regard to the bulk input voltage, VIN.

The UCC2897A adds a second level hiccup mode current sense threshold, bi-directional synchronization and input overvoltage protection functionalities. The UCC2897A is offered in 20-pin TSSOP (PW) and 20-pin QFN (RGP) package.

ABSOLUTE MAXIMUM RATINGS

over operating free-air temperature range unless otherwise noted(1)

Line input voltage, V_IN		120	V
Supply voltage, V_DD	(I_DD < 10 mA)	116.5	V
Analog inputs	FB, CS, SYNC, LINEOV, LINEUV	−0.3 to (V_REF + 0.3)	V
Output source current (peak), I_{O_SOURCE}	OUT, AUX	2.5	A
Output sink current (peak), I_{O_SINK}	OUT, AUX	-2.5	A
Operating junction temperature range, T_J		−55 to 150	°C
Storage temperature, Tstg		−65 to 150	°C
ESD rating	Human body model, (HBM)	2000	V
ESD rating	Charged device model (CDM)	500	V
Lead temperature, Tsol, 1,6 mm (1/16 inch) from case for 10 seconds		300	°C

(1) Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltages are with respect to GND. Currents are positive into and negative out of, the specified terminal.

TYPICAL APPLICATION DIAGRAM
