MAX234CWE Electronics IC Chips Integrated Circuits IC Component

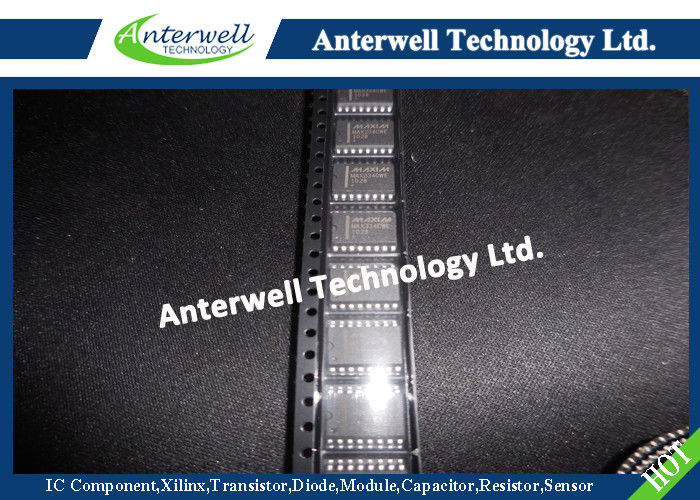

: Large Image : MAX234CWE Electronics IC Chips Integrated Circuits IC Component

Product Details:

Place of Origin:	THAILAND
Brand Name:	MAIMX
Certification:	Original Factory Pack
Model Number:	MAX234CWE

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	REEL
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	8000PCS

Contact Now

Detailed Product Description

Temperature Range:	-65°C To +160°C	Payment Term:	T/T, Paypal, Western Union
Voltage:	-0.3 To +6V	Current:	10A
Package:	SOP-16	Factory Package:	REEL
High Light:	electronic integrated circuit , linear integrated circuits

MAX234CWE Electronics IC Chips Integrated Circuits IC Component

+5V-Powered, Multichannel RS-232 Drivers/Receivers

Features

♦ For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/ MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1µF External Capacitors (MAX3246E Available in a UCSP™ Package)

♦ For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1µA, Single RS-232 Transceiver with AutoShutdown

Applications

Portable Computers Low-Power Modems Interface

Translation Battery-Powered RS-232 Systems Multidrop RS-232 Networks

Supply Voltage (VCC) ...............................................-0.3V to +6V V+ (Note 1)..................................................(VCC - 0.3V) to +14V V- (Note 1).............................................................+0.3V to +14V Input Voltages TIN..............................................................-0.3V to (VCC - 0.3V) RIN (Except MAX220) ........................................................±30V

RIN (MAX220).....................................................................±25V

TOUT (Except MAX220) (Note 2) .......................................±15V

TOUT (MAX220)...............................................................±13.2V

Output Voltages TOUT.............................................±15V

ROUT.........................................................-0.3V to (VCC + 0.3V)

Driver/Receiver Output Short Circuited to GND.........Continuous Continuous

Power Dissipation (TA = +70°C)

16-Pin Plastic DIP (derate 10.53mW/°C above +70°C)..842mW

18-Pin Plastic DIP (derate 11.11mW/°C above +70°C)..889mW

20-Pin Plastic DIP (derate 8.00mW/°C above +70°C) ..440mW

16-Pin Narrow SO (derate 8.70mW/°C above +70°C) ...696mW

16-Pin Wide SO (derate 9.52mW/°C above +70°C)......762mW

18-Pin Wide SO (derate 9.52mW/°C above +70°C)......762mW

20-Pin Wide SO (derate 10.00mW/°C above +70°C)....800mW

20-Pin SSOP (derate 8.00mW/°C above +70°C) ..........640mW

16-Pin CERDIP (derate 10.00mW/°C above +70°C).....800mW

18-Pin CERDIP (derate 10.53mW/°C above +70°C).....842mW

Operating Temperature Ranges

MAX2_ _AC_ _, MAX2_ _C_ _.............................0°C to +70°C

MAX2_ _AE_ _, MAX2_ _E_ _ ..........................-40°C to +85°C

MAX2_ _AM_ _, MAX2_ _M_ _.......................-55°C to +125°C

Storage Temperature Range .............................-65°C to +160°C

Lead Temperature (soldering, 10s) (Note 3) ...................+300°C

MAXIMUM RATINGS (Voltages Referenced to VSS)

Symbol	Parameter	Value	Unit
Vdd	DC Supply Voltage Range	-0.5 to +18.0	V
Vin V_out	Input or Output Voltage Range (DC or Transient)	-0.5 to Vdd+0.5	V
I_in I_out	Input or Output Current (DC or Transient) Per Pin	+-10	mA
P_D	Power Dissipation, Per Package	500	mW
T_A	Ambient Temperature Range	-55 to +125	°C
T_stg	Storage Temperature Range	-65 to +150	°C
T_L	Lead Temperture	260	°C
