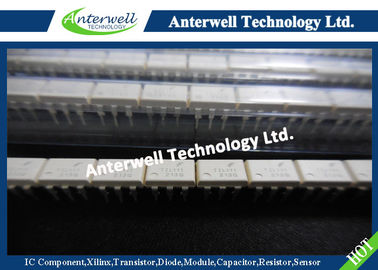

TIL111 transistor integrated circuit components , electronics ic chips

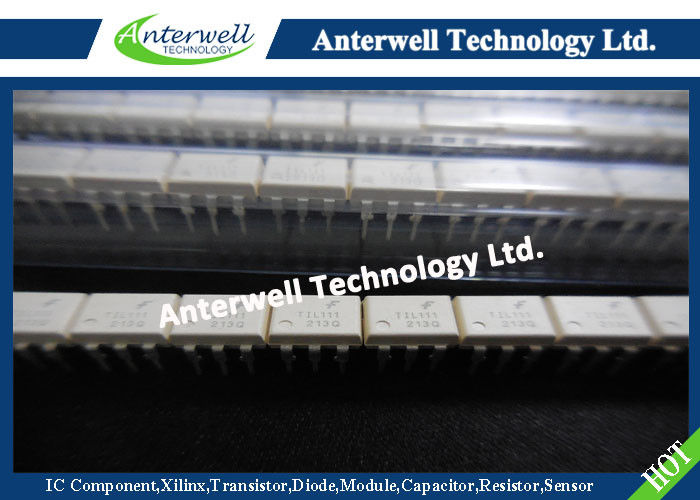

: Large Image : TIL111 transistor integrated circuit components , electronics ic chips

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TIL111

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8300pcs

Contact Now

Detailed Product Description

Storage Temperature:	-55 To +150 °C	Operating Temperature:	-55 To +100 °C
Lead Solder Temperature:	260°C For 10 Sec	Collector-Emitter Voltage:	30 V
Collector-Base Voltage:	70 V	Emitter-Base Voltage:	7 V
High Light:	electronic integrated circuit , linear integrated circuits

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

PI3A125CEX	10000	PERICOM	16+	SC70-5
LM301AN	6980	NSC	13+	DIP-8
MAX8211ESA+	8163	MAXIM	16+	SOP
ZXMP6A13GTA	1800	DIODES	12+	SOT223
MC34118L	4908	UTC	16+	SOP-28
LM78M05CDTX	10000	NSC	15+	TO-252
LT6105IMS8#PBF	14438	LT	15+	MSOP
MC74VHCT138ADTR2	4448	ON	10+	TSSOP
MOC3042SM	5497	FAIRCHILD	16+	SOP
AUIRFP2907	5433	IR	13+	TO-247
BTS134D	3664	INFINEO	07+	TO-252
CY7C1041DV33-10BVXIT	1904	CYPRESS	08+	BGA
MIC2025-1YM	6346	MICREL	15+	SOP
LM35DT	1590	NSC	14+	TO-220
MCP23017-E/ML	5170	MICROCHIP	15+	QFN
MC33064P-5G	12224	ON	16+	TO-92
PIC16F648A-I/SS	5098	MICROCHIP	14+	SSOP
MMSZ4699T1G	25000	ON	16+	SOD-123
MPXV7025DP	6183	FREESCALE	14+	SOP
AZC002-02N.R7F	2000	AMAZING	08+	SOT-143
LM7372MR	852	NSC	14+	SOP-8
LM4040D25IDBZR	5467	TI	15+	SOT-23
LM7372MRX	719	TI	14+	SOP-8
LM4040C25IDBZR	4765	TI	15+	SOT-23
LM2675MX-ADJ	3000	NSC	14+	SOP-8
MPXV5010DP	6169	FREESCALE	14+	SMD
LM7815CT	8548	NSC	14+	TO-220
MIC2026-1YM	6358	MICREL	16+	SOP
MCP2515-I/ST	5224	MICROCHIP	15+	TSSOP
AAT3236IGV-3.3-T1	15000	ANALOGIC	15+	SOT23-5

GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS

TIL111 TIL111-M TIL117-M MOC8100-M

DESCRIPTION

The MOC8100, TIL111 and TIL117 optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.

FEATURES

• The TIL111 is also available in both black and white packages by specifying -M suffix, e.g. TIL111-M for the white package and no suffix for the black package.

• UL recognized (File # E90700)

• VDE recognized (File # 94766); (File #102497 for white package)

- Add option V for white package (e.g., TIL111V-M)

- Add option 300 for black package (e.g., TIL111.300)

APPLICATIONS

• Power supply regulators

• Digital logic inputs

• Microprocessor inputs

• Appliance sensor systems

• Industrial controls

ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)

Parameter	Device	Symbol	Value	Units
TOTAL DEVICE Storage Temperature	All	T_STG	-55 to +150	°C
Operating Temperature	All	T_OPR	-55 to +100	°C
Lead Solder Temperature	All	T_SOL	260 for 10 sec	°C
Total Device Power Dissipation @ TA = 25°C Derate above 25°C	All	P_D	250	mW
	All	P_D	3.3 (non-M) 2.94 (-M)	mW/°C
EMITTER DC/Average Forward Input Current	All	I_F	100 (non-M), 60 (-M)	mA
Reverse Input Voltage	TIL111/TIL111-M	V_R	3	V
Reverse Input Voltage	MOC8100-M/TIL117-M	V_R	6	V
Forward Current - Peak (300µs, 2% Duty Cycle)	All	I_F(pk)	3	A
LED Power Dissipation @ TA = 25 °C Derate above 25°C	All	P_D	150 (non-M), 120 (-M)	mW
LED Power Dissipation @ TA = 25 °C Derate above 25°C	All	P_D	2.0 (non-M), 1.41 (-M)	mW/°C
DETECTOR Collector-Emitter Voltage	All	V_CEO	30	V
Collector-Base Voltage	All	V_CBO	70	V
Emitter-Collector Voltage	TIL111-M/TIL117-M	V_ECO	7	V
Emitter-Base Voltage	All	V_EBO	7	V
Detector Power Dissipation @ TA = 25 °C Derate above 25°C	All	P_D	150	mW
Detector Power Dissipation @ TA = 25 °C Derate above 25°C	All	P_D	2.0 (non-M), 1.76 (-M)	mW/°C
