Product Details:
Payment & Shipping Terms:
|
| Output Sustaining Voltage: | −0.5 To 50 V | Output Current: | 500 MA/ch |
|---|---|---|---|
| Input Voltage: | −0.5 To 30 V | Input Current: | 25 MA |
| Clamp Diode Reverse Voltage: | 50 V | Clamp Diode Forward Current: | 500 MA |
| Operating Temperature: | −40 To 85 °C | Storage Temperature: | −55 To 150 °C |
| High Light: | electronic integrated circuit,linear integrated circuits |
||
Stock Offer (Hot Sell)
| Part no. | Quantity | Brand | D/C | Package |
| LM2940S-5.0 | 1200 | NSC | 16+ | SOT263 |
| LM386 | 1200 | NSC | 16+ | SOP8 |
| M27C512-12F1 | 1200 | ST | 13+ | DIP |
| M82C55A-2 | 1200 | OKI | 15+ | DIP |
| M95256-WMW6TP | 1200 | ST | 16+ | SOP-8 |
| MAX4094AUD | 1200 | MAX | 16+ | TSSOP-14 |
| MC3423P1 | 1200 | ON | 14+ | DIP-8 |
| NCP1337DR2G | 1200 | ON | 14+ | SOP7 |
| PIC16F1828-I/SO | 1200 | MICROCHIP | 14+ | SOP-20 |
| PT2262S | 1200 | PTC | 16+ | SOP |
| SFH420 | 1200 | OSRAM | 16+ | SMD |
| TOP104YN | 1200 | POWER | 13+ | TO-220 |
| TPS2044ADR | 1200 | TI | 15+ | SOP16 |
| TJA1054AT | 1201 | NXP | 16+ | SOP-14 |
| LAT-15+ | 1211 | MINI | 16+ | SOT143 |
| OPA2134PA | 1211 | BB | 14+ | DIP-8 |
| IL300-E | 1212 | VISHAY | 14+ | SMD-8 |
| AD581JH | 1225 | AD | 14+ | CAN |
| IRGP50B60PD1 | 1250 | IR | 16+ | TO-247 |
| LD1117DT50TR | 1250 | ST | 16+ | SOT-252 |
| LM387 | 1250 | NS | 13+ | ZIP |
| MC9S08QE16CLC | 1250 | FREESCAL | 15+ | LQFP32 |
| 2SA1316 | 1252 | TOSHIBA | 16+ | TO-92 |
| ATTINY44A-SSU | 1254 | ATMEL | 16+ | SOP |
| DS1213C | 1277 | DALLAS | 14+ | DIP |
| LD7575PS | 1277 | LEADTREND | 14+ | SOP8 |
| AX88772BLF | 1280 | ASIX | 14+ | QFP |
| SN7432N | 1299 | TI | 16+ | DIP-14 |
| CD4724BCN | 1300 | FAIRCHILD | 16+ | DIP-16 |
| DS9034PCX | 1300 | DALLAS | 13+ | PCM |

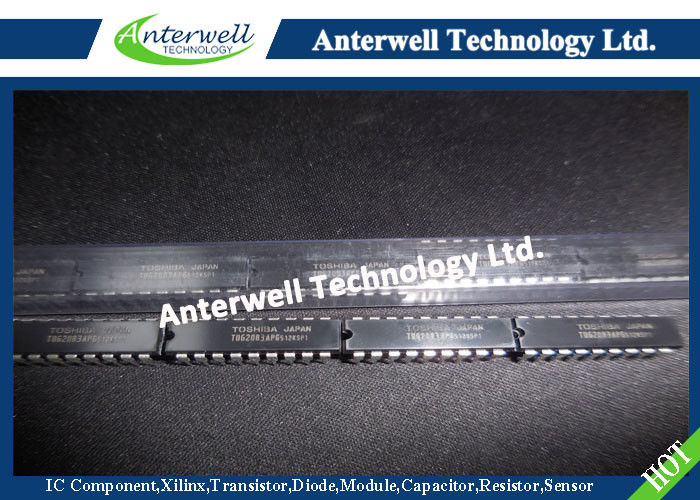

Toshiba Bipolar Digital Integrated Circuit Silicon Monolithic TD62081APG,TD62081AFG,TD62082APG,TD62082AFG, TD62083APG,TD62083AFG,TD62084APG,TD62084AFG
8ch Darlington Sink Driver
The TD62081APG/AFG Series are high-voltage, high-current darlington drivers comprised of eight NP darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers.
The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Features
Absolute Maximum Ratings (Ta = 25°C)
| Characteristics | Symbol | Rating | Unit | |
| Output sustaining voltage | VCE (SUS) | −0.5 to 50 | V | |
| Output current | IOUT | 500 | mA/ch | |
| Input voltage | VIN (Note 1) | −0.5 to 30 | V | |
| Input current | IIN (Note 2) | 25 | mA | |
| Clamp diode reverse voltage | VR | 50 | V | |
| Clamp diode forward current | IF | 500 | mA | |
| Power dissipation | APG | PD | 1.47 | W |
| AFG | 0.96 | |||
| Operating temperature | Topr | −40 to 85 | °C | |
| Storage temperature | Tstg | −55 to 150 | °C | |
Note 1: Except TD62081APG/AFG
Note 2: Only TD62081APG/AFG
Weight
DIP18-P-300-2.54D : 1.47 g (typ.)
SOP18-P-375-1.27 : 0.41 g (typ.)
Pin Connection (top view)
