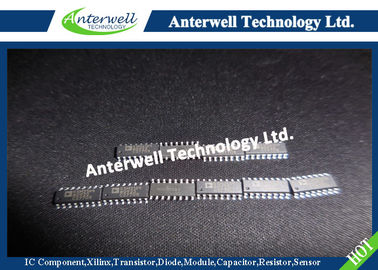

SSM2164PZ Electronic IC Chips Quad Voltage Controlled Amplifier

: Large Image : SSM2164PZ Electronic IC Chips Quad Voltage Controlled Amplifier

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SSM2164PZ

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7600pcs

Contact Now

Detailed Product Description

Supply Voltage:	±18 V	Input, Output, Control Voltages:	V– To V+
Storage Temperature:	–65°C To +150°C	Operating Temperature:	–40°C To +85°C
Junction Temperature:	–65°C To +150°C	Lead Temperature (Soldering 60 Sec):	+300°C
High Light:	electronic integrated circuit , linear integrated circuits

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

CY62256LL-70PXC	1000	CYRRES	16+	DIP
DAN403	1000	ROHM	16+	ZIP-9
G20N60B3D	1000	FAIRCHILD	13+	TO-3P
HD6321P	1000	HIT	15+	DIP-40
HD74LS42P	1000	HIT	16+	DIP-16
HY6264ALP-10	1000	HYUNDAI	16+	DIP-28
IRG4PH50UD	1000	IR	14+	TO-247
ITR8307/F43	1000	EVERLIGHT	14+	DIP-4
L298	1000	ST	14+	ZIP-15
LM2423TE	1000	NS	16+	ZIP11
LM3406MH	1000	NS	16+	TSSOP-14
LM4562NA	1000	NSC	13+	DIP-8
LM725CH	1000	NSC	15+	CAN8
LMH0024MA	1000	NSC	16+	SOP-16
M27C128A-12F1	1000	ST	16+	DIP
M27C4001-10F1	1000	ST	14+	DIP
MAX705CPA	1000	MAXIM	14+	DIP8
MCP1700T-3002E/MB	1000	MICROCHIP	14+	SOT-89
MCT9001	1000	FSC	16+	DIP8
P600M	1000	VISHAY	16+	R-6
PA1A-24V	1000	Panisonic	13+	DIP
Q6010	1000	Littelfus	15+	TO-220
TIC106D	1000	TI	16+	TO-220
TLE6209R	1000		16+	SOP20
TLV4112IDGNRG4	1000	TI	14+	MSOP8
UPC177C	1000	NEC	14+	DIP-14
XC4VLX60-10FFG668C	1000	XILINX	14+	BGA
MTD2007F	1001	SHINDENGE	16+	HSOP-28
2SK3522-01	1002	FUJI	16+	TO-3PF
ADF4350BCPZ	1002	ADI	13+	LFCSP32

Low Cost Quad Voltage Controlled Amplifier SSM2164

FEATURES

Four High Performance VCAs in a Single Package
0.02% THD
No External Trimming
120 dB Gain Range
0.07 dB Gain Matching (Unity Gain)
Class A or AB Operation

APPLICATIONS

Remote, Automatic, or Computer Volume Controls
Automotive Volume/Balance/Faders
Audio Mixers
Compressor/Limiters/Compandors
Noise Reduction Systems
Automatic Gain Controls
Voltage Controlled Filters
Spatial Sound Processors
Effects Processors

GENERAL DESCRIPTION

The SSM2164 contains four independent voltage controlled amplifiers (VCAs) in a single package. High performance (100 dB dynamic range, 0.02% THD) is provided at a very low cost-per-VCA, resulting in excellent value for cost sensitive gain control applications. Each VCA offers current input and output for maximum design flexibility, and a ground referenced –33 mV/dB control port.

All channels are closely matched to within 0.07 dB at unity gain, and 0.24 dB at 40 dB of attenuation. A 120 dB gain range is possible.

A single resistor tailors operation between full Class A and AB modes. The pinout allows upgrading of SSM2024 designs with minimal additional circuitry.

The SSM2164 will operate over a wide supply voltage range of ±4 V to ±18 V. Available in 16-pin P-DIP and SOIC packages, the device is guaranteed for operation over the extended industrial temperature range of –40°C to +85°C.

ABSOLUTE MAXIMUM RATINGS

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V

Input, Output, Control Voltages . . . . . . . . . . . . . . . . V– to V+

Output Short Circuit Duration to GND . . . . . . . . . Indefinite

Storage Temperature Range . . . . . . . . . . . . –65°C to +150°C

Operating Temperature Range . . . . . . . . . . . . . –40°C to +85°C

Junction Temperature Range . . . . . . . . . . . . –65°C to +150°C

Lead Temperature Range (Soldering 60 sec) . . . . . . . . +300°C

FUNCTIONAL BLOCK DIAGRAM

SSM2164PZ Electronic IC Chips Quad Voltage Controlled Amplifier
