SN74HC04N Electronic IC Chips Integrated Components HEX INVERTERS

China SN74HC04N Electronic IC Chips Integrated Components HEX INVERTERS supplier

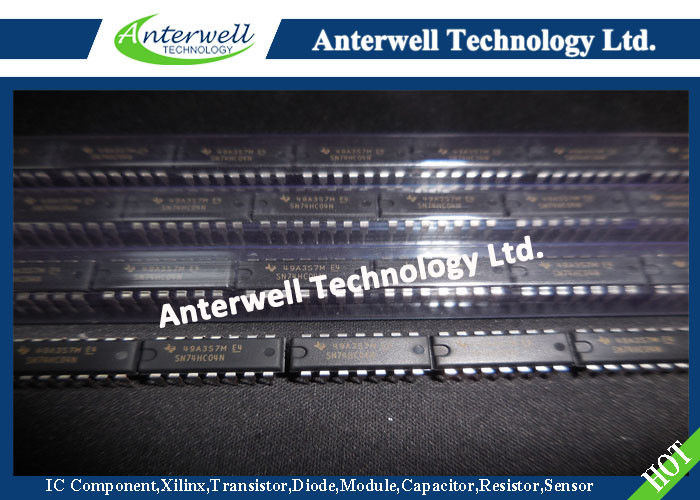

Large Image :  SN74HC04N Electronic IC Chips Integrated Components HEX INVERTERS

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: SN74HC04N

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8800pcs
Contact Now
Detailed Product Description
Supply Voltage: -0.5 V To 7 V Input Clamp Current: ±20 MA
Output Clamp Current: ±20 MA Continuous Output Current: ±25 MA
Continuous Current Through VCC Or GND: ±50 MA Storage Temperature: -65°C To 150°C
High Light:

electronic integrated circuit

,

linear integrated circuits



Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
SHT10 3842 SENSIRIO 14+ SOP-8
STM32F103VET6 3834 ST 14+ LQFP100
TB6517AF 3826 SANKYO 14+ QFP
TEA3718DP 3818 ST 16+ DIP16
TLE5216G 3810 16+ SOP20
PIC16F57-I/P 3802 MICROCHIP 13+ DIP
TCM129C13ADW 3794 TI 15+ SOP20
XC9572XL-10PCG44C 502 XILINX 16+ PLCC
9977GM 520 APEC 16+ SOP8
HD14024BP 520 HITACHI 14+ DIP-14
KSZ8995XA 520 MICREL 14+ QFP
L4973D3.3 520 ST 14+ SOP20
MA3810 520 SHINDENG 16+ ZIP-7
MP4303 520 TOSHIBA 16+ ZIP
P8255A-5 520 INTEL 13+ DIP-40
XTR105UA 520 TI 15+ SOP-14
MIC29712BT 521 MICREL 16+ TO-220
FQA55N25 527 FSC 16+ TO-247
C8051F020-GQR 555 SILICON 14+ TQFP-100
MAX232DR 555 TI 14+ SOP16
HMC316MS8 570 HITTITE 14+ MSOP8
OPA2333AIDR 571 TI 16+ QFN
ADC0808CCN 580 NS 16+ DIP
CX77304-16P 580 SKYWOR 13+ QFN
AT24C512BN-SH25-T 600 ATMEL 15+ SOP8
MCP6044-I/SL 600 MICROCHIP 16+ SOP
TL16C752BPT 607 TI 16+ QFP
UPC451C 611 NEC 14+ DIP
MC56F8006VLC 633 FREESCALE 14+ LQFP-32
A7800A 665 AVAGO 14+ DIP8





SN54HC04, SN74HC04

HEX INVERTERS



  • Wide Operating Voltage Range of 2 V to 6 V
  • Outputs Can Drive Up To 10 LSTTL Loads
  • Low Power Consumption, 20-µA Max ICC
  • Typical tpd = 8 ns
  • ±4-mA Output Drive at 5 V
  • Low Input Current of 1 µA Max

description

The ’HC04 devices contain six independent inverters. They perform the Boolean function Y = A in positive logic.



absolute maximum ratings over operating free-air temperature range

(unless otherwise noted)†



Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  –0.5 V to 7 V

Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA

Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 1) . . . . . . . .  . . . . . . . . . . . . . . . . . ±20 mA

Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA

Continuous current through VCC or GND . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA

Package thermal impedance, θJA (see Note 2): D package  . . . . . . . . . . . . . . .  . . . . . . . . . . . 86 °C/W

                                                                           N package  . . . . . . . . . .  . . . . . . . . . . . . . . . . 80 °C/W

                                                                           NS package . . . . . . . . . . . . . . . . . . . . . . . . . . 76 °C/W

                                                                           PW package  . . . . . . . . . . . . . . . . . . . . . . . . 113 °C/W

Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  –65°C to 150°C



†Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES:

1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

2. The package thermal impedance is calculated in accordance with JESD 51-7.
