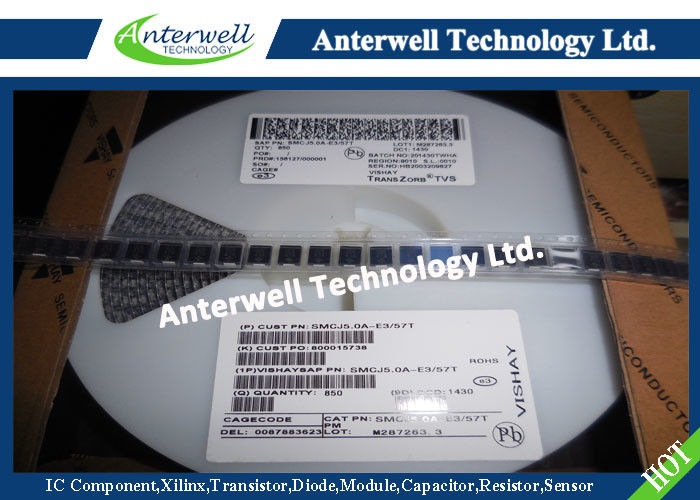

SMCJ5.0A-E3/57T Electronic IC Chips Integrated Circuit Components

: Large Image : SMCJ5.0A-E3/57T Electronic IC Chips Integrated Circuit Components

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SMCJ5.0A-E3/57T

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7500pcs

Contact Now

Detailed Product Description

Peak Pulse Power Dissipation With A 10/1000 µs Waveform:	1500 W	Peak Forward Surge Current 8.3 Ms Single Half Sine-wave Uni-directional Only:	200 A
Power Dissipation On Infinite Heatsink, TA = 50 °C:	6.5 W	Operating Junction Temperature:	- 55 To + 150 °C
Storage Temperature:	- 55 To + 150 °C	VWM:	5.0 V To 188 V
High Light:	electronic integrated circuit , linear integrated circuits

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

TEF6606T	4200	NXP	15+	SOP-32
TDA7293V	4500	ST	16+	ZIP-16
TS2431AILT	30000	ST	15+	SOT-23
TIP42C	10000	FSC	15+	TO-220
TDA2050V	4819	ST	14+	TO220-5
TDA7294V	8938	ST	15+	ZIP-15
TPS2552DBVR	8928	TI	16+	SOT23-6
TL494CN	10000	TI	15+	DIP-16
TIP42C	10000	FSC	15+	TO-220
TIP41C	10000	FSC	15+	TO-220
VB326SP	5399	ST	15+	SOP-10
TDA2030V	6911	ST	15+	TO-220
TDA2052V	2500	ST	15+	TO220-7
W78E365A40PL	4827	WINBOND	15+	PLCC44
TCLT1002	10000	VISHAY	15+	SOP-4
TL431CLPRE3	30000	TI	16+	TO-92
TS5A22362DGSR	5882	TI	15+	MSOP-10
TPA3111D1PWPR	7261	TI	13+	TSSOP-28
TS3A24159DGSR	3877	TI	15+	MSOP-10
VIPER100A	5382	ST	14+	TO-220-5
TIL119	4120	FSC	15+	DIP-6
ULN2823A	3727	ALLEGRO	15+	DIP-18
MCP6001T-I/OT	10000	MICROCHIP	16+	SOT23-5
LTC1286CS8	5342	LT	16+	SOP
LTST-C170TGKT	25000	LITEON	14+	SMD
MR756	6288	ON	16+	DIP
MAX31865ATP+T	9950	MAXIM	15+	QFN
NTF3055L108T1G	4680	ON	14+	SOT-223
ATMEGA8A-AU	3304	ATMEL	15+	QFP32
MC14046BDWR2G	15000	ON	13+	SOP

SMCJ5.0 thru SMCJ188CA

Vishay General Semiconductor

Surface Mount TRANSZORB® Transient Voltage Suppressors

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated chip junction

• Available in uni-directional and bi-directional

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

• Solder dip 260 °C, 40 s

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.

MECHANICAL DATA

Case: DO-214AB (SMCJ)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS compliant, commercial grade

Base P/NHE3 - RoHS compliant, high reliability/ automotive grade (AEC Q101 qualified)

Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test

Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types

MAXIMUM RATINGS (T_A = 25 °C unless otherwise noted)

PARAMETER	SYMBOL	VALUE	UNIT
Peak pulse power dissipation with a 10/1000 µs waveform ⁽¹⁾⁽²⁾	P_PPM	1500	W
Peak forward surge current 8.3 ms single half sine-wave uni-directional only⁽²⁾	I_FSM	200	A
Power dissipation on infinite heatsink, T_A = 50 °C	P_D	6.5	W
Operating junction and storage temperature range	T_J, T_STG	- 55 to + 150	°C
