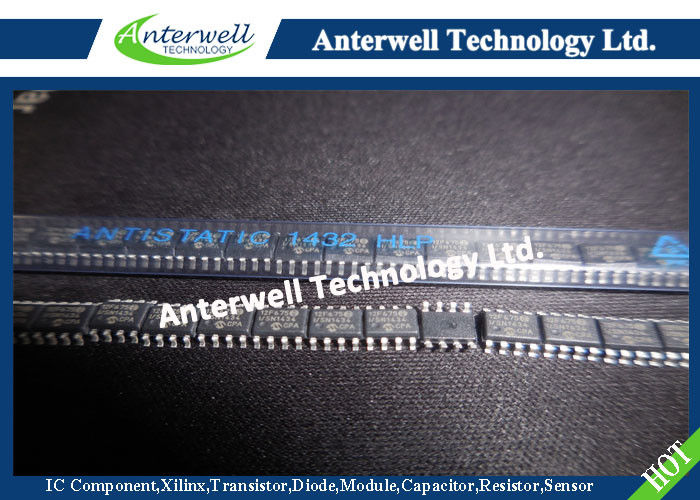

PIC12F675-I/SN Electronic IC Chips microchips and integrated circuits



Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

CA3080E	4562	INTELSIL	14+	DIP
TMS320F2812PGFA	4554	TI	14+	QFP
AD5372BSTZ	4546	AD	14+	QFP64
MSP430F2252IDAR	4538	TI	16+	TSSOP
DS1225Y-150	4530	DS	16+	DIP
LP3878	4522	NS	13+	SOP-8
UPC1678GV	4514	NEC	15+	SSOP8
TLE4270S	4506		16+	TO220-5
AT45DB021D-SH-T	4498	ATMEL	16+	SOP-8
LM2676SX-5.0	4490	NS	14+	TO263
REF3225AIDBVRG4	4482	TI	14+	SOT23
OPA4344UA	4474	TI	14+	SOP14
AT28C64B-15PU	4466	ATMEL	16+	DIP
IRG20B120UD-E	4458	IR	16+	TO-247
IRFP9140N	4450	IR	13+	TO-247
2SK2915	4442	TOSHIBA	15+	TO-3P
AD9246BCPZ-125	4434	AD	16+	LFCSP
AD9517-3ABCPZ	4426	AD	16+	LFCSP
LT1176CSW-5	4418	LINEAR	14+	SOP20
LTC1174CS8-5	4410	LT	14+	SOP8
LTC4352CMS#PBF	4402	LINEAR	14+	MSOP-12
MAX4257EUA	4394	MAXIM	16+	MSOP-8
PE3336	4386	PEREGRIN	16+	PLCC
R25	4378	N/A	13+	SOT-23
TDA4867J	4370	PHI	15+	ZIP-9
UC2844DG4	4362	TI	16+	SOP14
X28HC256P-15	4354	XICOR	16+	DIP
2SK1120	4346	TOS	14+	TO-3P
740L6010	4338	FSC	14+	DIP
BTS724G	4330		14+	SOP-20





PIC12F629/675

8-Pin, Flash-Based 8-Bit CMOS Microcontrollers



High-Performance RISC CPU:

• Only 35 Instructions to Learn

  - All single-cycle instructions except branches

• Operating Speed:

  - DC – 20 MHz oscillator/clock input

  - DC – 200 ns instruction cycle



• Interrupt Capability

• 8-Level Deep Hardware Stack

• Direct, Indirect, and Relative Addressing modes



Special Microcontroller Features:

• Internal and External Oscillator Options

  - Precision Internal 4 MHz oscillator factory calibrated to ±1%

  - External Oscillator support for crystals and resonators

  - 5 μs wake-up from Sleep, 3.0V, typical



• Power-Saving Sleep mode

• Wide Operating Voltage Range

  – 2.0V to 5.5V

• Industrial and Extended Temperature Range



• Low-Power Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Brown-out Detect (BOD)

• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation



• Multiplexed MCLR/Input Pin

• Interrupt-on-Pin Change

• Individual Programmable Weak Pull-ups

• Programmable Code Protection



• High Endurance Flash/EEPROM Cell

  - 100,000 write Flash endurance

  - 1,000,000 write EEPROM endurance

  - Flash/Data EEPROM Retention: > 40 years



Low-Power Features:

• Standby Current: - 1 nA @ 2.0V, typical

• Operating Current:

  - 8.5 μA @ 32 kHz, 2.0V, typical

  - 100 μA @ 1 MHz, 2.0V, typical



• Watchdog Timer Current

  - 300 nA @ 2.0V, typical

• Timer1 Oscillator Current:

  - 4 μA @ 32 kHz, 2.0V, typical



Peripheral Features:

• 6 I/O Pins with Individual Direction Control

• High Current Sink/Source for Direct LED Drive



• Analog Comparator module with:

  - One analog comparator

  - Programmable on-chip comparator voltage reference (CVREF) module

  - Programmable input multiplexing from device inputs

  - Comparator output is externally accessible



• Analog-to-Digital Converter module (PIC12F675):

  - 10-bit resolution

  - Programmable 4-channel input

  - Voltage reference input

• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler



• Enhanced Timer1:

  - 16-bit timer/counter with prescaler

  - External Gate Input mode

  - Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected

• In-Circuit Serial ProgrammingTM (ICSPTM) via two pins



Absolute Maximum Ratings†



Ambient temperature under bias................................................................................... -40 to +125°C

Storage temperature ................................................................................................ -65°C to +150°C

Voltage on V_DD with respect to V_SS ............................................................................... -0.3 to +6.5V

Voltage on MCLR with respect to Vss ............................................................................-0.3 to +13.5V

Voltage on all other pins with respect to V_SS .................................................... -0.3V to (VDD + 0.3V)



Total power dissipation⁽¹⁾ ........................................................................................................800 mW

Maximum current out of V_SS pin .............................................................................................. 300 mA

Maximum current into V_DD pin ................................................................................................. 250 mA

Input clamp current, I_IK (V_I < 0 or V_I > V_DD)...............................................................................±20 mA

Output clamp current, I_OK (Vo < 0 or Vo >V_DD) ........................................................................±20 mA



Maximum output current sunk by any I/O pin............................................................................... 25 mA

Maximum output current sourced by any I/O pin ......................................................................... 25 mA

Maximum current sunk by all GPIO ............................................................................................ 125 mA

Maximum current sourced all GPIO ............................................................................................ 125 mA



Note 1: Power dissipation is calculated as follows: PDIS = VDD x {IDD - ∑ IOH} + ∑ {(VDD-VOH) x IOH} + ∑(VOl x IOL).



Pin Diagrams
