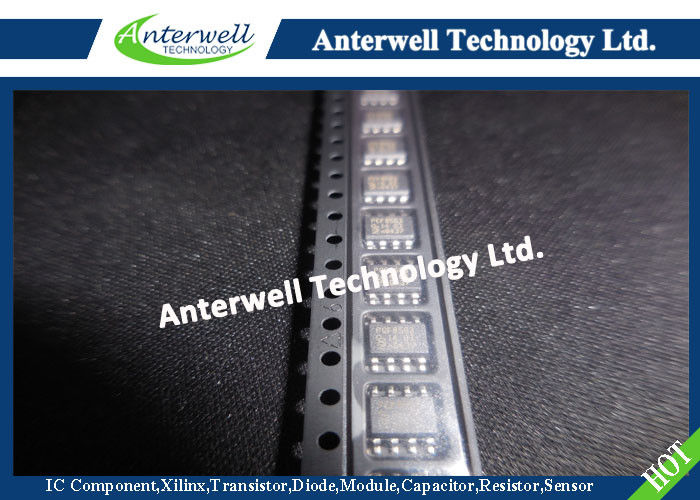

PCF8563 300 mW Electronic IC Chips timer ic Real - time clock / calendar
Stock Offer (Hot Sell)
Part no. | Quantity | Brand | D/C | Package |
XC3S200-4PQG208C | 4802 | XILINX | 15+ | QFP |
TDA8920BTH | 4794 | NXP | 16+ | HSOP24 |
2SJ115 | 4786 | TOSHIBA | 16+ | TO-3P |
EL7584IR | 4778 | INTERSIL | 14+ | TSSOP-24 |
OPA2107AU | 4770 | TI | 14+ | SOP |
HCPL-7840-000E | 4762 | AVAGO | 14+ | DIP |
FT4232HL | 4754 | FTDI | 16+ | QFP |
XC3S400-4PQG208C | 4746 | XILINX | 16+ | QFP |
AD9246BCPZ-80 | 4738 | AD | 13+ | LFCSP |
AT42QT1040-MMH | 4730 | ATMEL | 15+ | QFN20 |
EPM7160SLC84-10N | 4722 | ALTERA | 16+ | PLCC |
ICL7667 | 4714 | INTERSIL | 16+ | SOP8 |
IRG4BC30UD | 4706 | IR | 14+ | TO-220 |
LM3404MAX | 4698 | NS | 14+ | SOP-8 |
M27C4001-80XF1 | 4690 | ST | 14+ | DIP |
TP3094V | 4682 | NSC | 16+ | PLCC44 |
TUSB3410VF | 4674 | TI | 16+ | QFP |
VS1053B | 4666 | VLSI | 13+ | QFP-48 |
XC3S200-4PQ208C | 4658 | XILINX | 15+ | QFP |
CY7C68013A-100AXC | 4650 | CY | 16+ | DIP |
UC3525AN | 4642 | TI | 16+ | DIP-16 |
TIBPAL22V10ACNT | 4634 | TI | 14+ | DIP |
30554 | 4626 | BOSCH | 14+ | QFP |
LTC4357CMS8#PBF | 4618 | LINEAR | 14+ | MSOP-8 |
MCZ3001DB | 4610 | MCZ | 16+ | DIP-18 |
TDA3654 | 4602 | NXP | 16+ | ZIP-9 |
SP334ET | 4594 | SIPEX | 13+ | SOP28 |
TDA8566Q | 4586 | NXP | 15+ | ZIP |
AT89C55WD-24PU | 4578 | ATMEL | 16+ | DIP |
T7288EL | 4570 | LUCNET | 16+ | SOJ |
PCF8563 Real-time clock/calendar
General description
The PCF8563 is a CMOS real-time clock/calendar optimized for low power consumption. A programmable clock output, interrupt output and voltage-low detector are also provided. All address and data are transferred serially via a two-line bidirectional I2C-bus. Maximum bus speed is 400 kbits/s. The built-in word address register is incremented automatically after each written or read data byte.
Features
■ Provides year, month, day, weekday, hours, minutes and seconds based on 32.768 kHz quartz crystal
■ Century flag
■ Wide operating supply voltage range: 1.0 to 5.5 V
■ Low back-up current; typical 0.25 µA at VDD = 3.0 V and Tamb = 25 °C
■ 400 kHz two-wire I2C-bus interface (at VDD = 1.8 to 5.5 V)
■ Programmable clock output for peripheral devices: 32.768 kHz, 1024 Hz, 32 Hz and 1 Hz
■ Alarm and timer functions
■ Voltage-low detector
■ Integrated oscillator capacitor
■ Internal power-on reset
■ I 2C-bus slave address: read A3H; write A2H
■ Open drain interrupt pin.
Applications
■ Mobile telephones
■ Portable instruments
■ Fax machines
■ Battery powered products.
Quick reference data
Symbol | Parameter | Conditions | Min | Max | Unit |
VDD | supply voltage operating mode | I2C-bus inactive; Tamb = 25 °C | 1.0 | 5.5 | V |
I 2C-bus active; fSCL = 400 kHz; Tamb = −40 to +85 °C | 1.8 | 5.5 | V | ||
IDD | supply current; timer and CLKOUT disabled | fSCL = 400 kHz | - | 800 | µA |
fSCL = 100 kHz | - | 200 | µA | ||
fSCL = 0 Hz; Tamb = 25 °C | |||||
VDD = 5 V | - | 550 | nA | ||
VDD = 2 V | - | 450 | nA | ||
Tamb | operating ambient temperature | -40 | +85 | °C | |
Tstg | storage temperature | -65 | +150 | °C |
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol | Parameter | Min | Max | Unit |
VDD | supply voltage | -0.5 | +6.5 | V |
IDD | supply current | -50 | +50 | mA |
VI | input voltage on inputs SCL and SDA | -0.5 | 6.5 | V |
input voltage on input OSCI | -0.5 | VDD + 0.5 | V | |
VO | output voltage on outputs CLKOUT and INT | -0.5 | 6.5 | V |
II | DC input current at any input | -10 | +10 | mA |
IO | DC output current at any output | -10 | +10 | mA |
Ptot | total power dissipation | - | 300 | mW |
Tamb | operating ambient temperature | -40 | +85 | °C |
Tstg | storage temperature | -65 | +150 | °C |
Block diagram
Pin configuration
Device diode protection diagram
