Product Details:
Payment & Shipping Terms:
|
Temperature Range: | -65°C To +150°C | Payment Term: | T/T, Paypal, Western Union |
---|---|---|---|
Voltage: | +6.0V To -0.3V | Current: | ±50 MA |

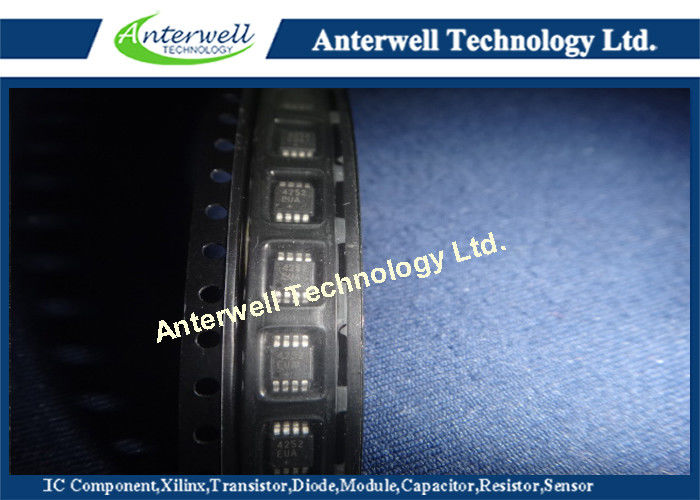

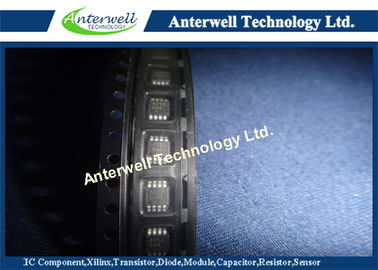

Package: | SOP-8 | Factory Package: | 3000/REEL |
Highlight: | electronic integrated circuit,digital integrated circuits |
Features
♦ Available in Space-Saving UCSP™, SOT23, and µMAX Packages
♦ Low Distortion: 0.0002% THD (1kΩ load)
♦ 400µA Quiescent Supply Current per Amplifier
♦ Single-Supply Operation from +2.4V to +5.5V
♦ Input Common-Mode Voltage Range Includes Ground
♦ Outputs Swing Within 8mV of Rails with a 10kΩ Load
♦ 3MHz GBW Product, Unity-Gain Stable (MAX4250–MAX4254) 22MHz GBW Product, Stable with AV ≥ 10V/V (MAX4249/MAX4255/MAX4256/MAX4257)
♦ Excellent DC Characteristics VOS = 70µV IBIAS = 1pA Large-Signal Voltage Gain = 116dB
♦ Low-Power Shutdown Mode: Reduces Supply Current to 0.5µA Places Outputs in a High-Impedance State
♦ 400pF Capacitive-Load Handling Capability
ABSOLUTE MAXIMUM RATINGS
Power-Supply Voltage (VDD to VSS)......................+6.0V to -0.3V
Analog Input Voltage (IN_+, IN_-)....(VDD + 0.3V) to (VSS - 0.3V)
SHDN Input Voltage....................................+6.0V to (VSS - 0.3V)
Output Short-Circuit Duration to Either Supply ..........Continuous Continuous Power Dissipation
(TA = +70°C) 5-Pin SOT23 (derate 7.1mW/°C above +70°C)...........571mW
8-Pin µMAX (derate 4.5mW/°C above +70°C) ............362mW
8-Pin SO (derate 5.88mW/°C above +70°C)...............471mW 8-Pin
UCSP (derate 4.7mW/°C above +70°C) ............379mW 10-Pin UCSP
(derate 6.1mW/°C above +70°C) ...........484mW
10-Pin µMAX (derate 5.6mW/°C above +70°C) ...........444mW
14-Pin SO (derate 8.33mW/°C above +70°C)..............667mW
Operating Temperature Range .........................-40°C to +125°C Junction Temperature......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
Bump Temperature (soldering) (Note 1) Infrared (15s) ........................+220°C
Vapor Phase (60s) ........................................................+215°C
Ordering Information
PART TEMP. RANGE PIN/BUMPPACKAGE TOP MARK |
MAX4249ESD -40°C to +85°C 14 SO — |
MAX4249EUB -40°C to +85°C 10 µMAX — |
MAX4250EUK-T -40°C to +85°C 5 SOT23-5 ACCI |
