MAX13082ECSA Electronic IC Chips integrated components Transceivers

China MAX13082ECSA Electronic IC Chips integrated components Transceivers supplier

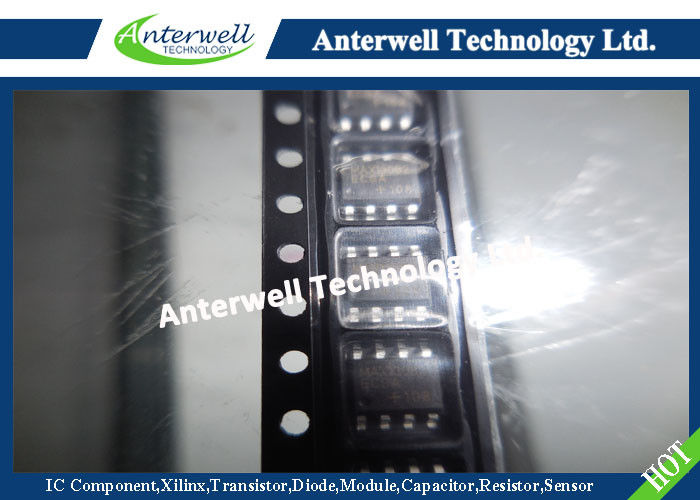

Large Image :  MAX13082ECSA Electronic IC Chips integrated components Transceivers

Product Details:

Place of Origin: original package
Brand Name: Anterwell
Certification: new & original
Model Number: MAX13082ECSA

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8300pcs
Contact Now
Detailed Product Description
Supply Voltage: +6V Driver Input Voltage: -0.3V To +6V
Driver Output Voltage: -8V To +13V Driver Output Current: ±250mA
Junction Temperature: +150°C Storage Temperature Range: -65°C To +150°C
High Light:

electronic integrated circuit

,

linear integrated circuits



Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
MCL4148-TR 20000 VISHAY 15+ LL34SOD323
MCR100-6 20000 ON 16+ TO-92
MUR1560 20000 ON 16+ O220
NE555P 20000 TI 14+ DIP-8
P6KE51CA 20000 VISHAY 14+ DO-15
P6KE56CA 20000 VISHAY 14+ DO-15
PIC12F683-I/SN 20000 MICROCHIP 16+ SOP-8
SMBJ9.0CA 20000 VISHAY 16+ SMB
SN74LVC1G17DBVR 20000 TI 13+ SOT23-5
STTH1L06A 20000 ST 15+ SMA
ULN2003APG 20000 TOSHIBA 16+ DIP-16
US1A-13-F 20000 DIODES 16+ DO-214AC
L6561N 20001 ST 14+ DIP
74HC14D 20008 NXP 14+ SOP
BZX84C15LT1G 20050 ON 14+ SOT-23
ULN2003AFWG 20099 TOSHIBA 16+ SOP-16
BFS17A 21000 NXP 16+ SOT-23
BZX84-C6V2 21000 NXP 13+ SOT23
HCF4051BEY 21000 ST 15+ DIP-16
IPD075N03LG 21000 16+ TO252
KBPC810 21000 IR 16+ DIP-4
PIC16F84A-04/P 21000 MICROCHIP 14+ DIP
SN74LV04APWR 21000 TI 14+ TSSOP
CD4026BE 21188 TI 14+ DIP
PDTC144EU 21200 NXP 16+ SOT323
ULN2003AFW 21250 TOSHIBA 16+ SOP16
74HC125 21300 NXP 13+ SOP
ER1002FCT 1329+ 21420 PEC 15+ TO-220F
CD4025BE 21477 TI 16+ DIP
79L06 21500 WS 16+ SOT-89





+5.0V, ±15kV ESD-Protected, Fail-Safe, Hot-Swap, RS-485/RS-422 Transceivers



General Description

The MAX13080E–MAX13089E +5.0V, ±15kV ESD-protected, RS-485/RS-422 transceivers feature one driver and one receiver. These devices include fail-safe circuitry, guaranteeing a logic-high receiver output when receiver inputs are open or shorted. The receiver outputs a logichigh if all transmitters on a terminated bus are disabled (high impedance). The MAX13080E family include a hotswap capability to eliminate false transitions on the bus during power-up or hot insertion.



The MAX13080E/MAX13081E/MAX13082E feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. The MAX13083E/MAX13084E also feature slew-rate-limited drivers but allow transmit speeds up to 500kbps. The MAX13086E/MAX13087E/ MAX13088E driver slew rates are not limited, making transmit speeds up to 16Mbps possible. The MAX13089E slew rate is pin selectable for 250kbps, 500kbps, and 16Mbps.



The MAX13082E/MAX13088E are intended for halfduplex communications, and the MAX13080E/ MAX13081E/MAX13083E/MAX13084E/MAX13086E/ MAX13087E are intended for full-duplex communications. The MAX13089E is selectable for half-duplex or full-duplex operation. It also features independently programmable receiver and transmitter output phase through separate pins.



The MAX13080E family transceivers draw 1.2mA of supply current when unloaded or when fully loaded with the drivers disabled. All devices have a 1/8-unit load receiver input impedance, allowing up to 256 transceivers on the bus.



The MAX13080E/MAX13083E/MAX13086E/MAX13089E are available in 14-pin PDIP and 14-pin SO packages. The MAX13081E/MAX13082E/MAX13084E/MAX13087E/ MAX13088E are available in 8-pin PDIP and 8-pin SO packages. The devices operate over the commercial, extended, and automotive temperature ranges.



Applications

  • Utility Meters
  • Lighting Systems
  • Industrial Control
  • Telecom
  • Security Systems
  • Instrumentation
  • Profibus



Features

♦ +5.0V Operation

♦ Extended ESD Protection for RS-485/RS-422 I/O Pins ±15kV Human Body Model

♦ True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility

♦ Hot-Swap Input Structures on DE and RE



♦ Enhanced Slew-Rate Limiting Facilitates ErrorFree Data Transmission

   (MAX13080E–MAX13084E/MAX13089E)

♦ Low-Current Shutdown Mode (Except MAX13081E/MAX13084E/MAX13087E)

♦ Pin-Selectable Full-/Half-Duplex Operation (MAX13089E)



♦ Phase Controls to Correct for Twisted-Pair Reversal (MAX13089E)

♦ Allow Up to 256 Transceivers on the Bus

♦ Available in Industry-Standard 8-Pin SO Package



ABSOLUTE MAXIMUM RATINGS



(All Voltages Referenced to GND)

Supply Voltage (VCC).............................................................+6V

Control Input Voltage (RE, DE, SLR,

   H/F, TXP, RXP)......................................................-0.3V to +6V

Driver Input Voltage (DI)...........................................-0.3V to +6V

Driver Output Voltage (Z, Y, A, B) ............................ -8V to +13V



Receiver Input Voltage (A, B)....................................-8V to +13V

Receiver Input Voltage

   Full Duplex (A, B) ..................................................-8V to +13V

Receiver Output Voltage (RO)....................-0.3V to (VCC + 0.3V)

Driver Output Current .....................................................±250mA



Continuous Power Dissipation (TA = +70°C)

   8-Pin SO (derate 5.88mW/°C above +70°C) .................471mW

   8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) .....727mW

   14-Pin SO (derate 8.33mW/°C above +70°C) ...............667mW

   14-Pin Plastic DIP (derate 10.0mW/°C above +70°C) ...800mW



Operating Temperature Ranges

   MAX1308_EC_ _ .................................................0°C to +75°C

   MAX1308_EE_ _ ..............................................-40°C to +85°C

   MAX1308_EA_ _ ............................................-40°C to +125°C



Junction Temperature......................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

Soldering Temperature (reflow) .......................................+260°C



Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.



Pin Configurations and Typical Operating Circuits

MAX13082ECSA Electronic IC Chips integrated components TransceiversMAX13082ECSA Electronic IC Chips integrated components Transceivers
