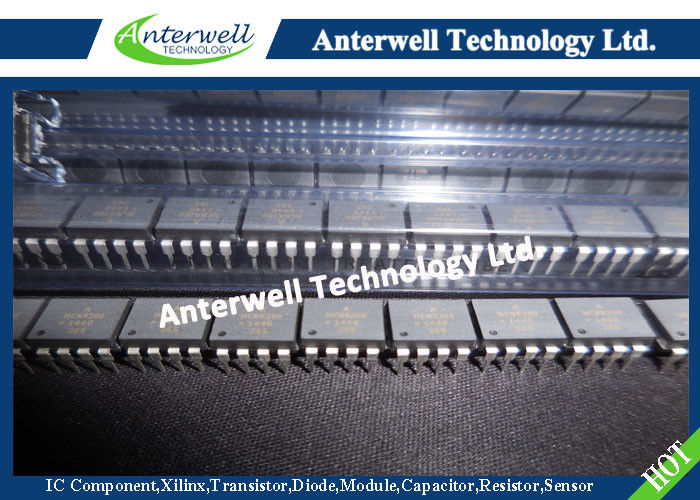

HCNR200-000E Integrated Circuit Chip linear digital integrated circuits

Stock Offer (Hot Sell)

HCNR200 and HCNR201

High-Linearity Analog Optocouplers

Description

The HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illuminates two closely matched photodiodes. The input photodiode can be used to monitor, and therefore stabilize, the light output of the LED. As a result, the non-linearity and drift characteristics of the LED can be virtually eliminated. The output photodiode produces a photocur rent that is linearly related to the light output of the LED. The close matching of the photo-diodes and advanced design of the package ensure the high linearity and stable gain characteristics of the opto coupler.

The HCNR200/201 can be used to isolate analog signals in a wide variety of applications that require good stability, linearity, bandwidth and low cost. The HCNR200/201 is very fl exible and, by appro priate design of the application circuit, is capable of operating in many diff erent modes, includ ing: unipolar/bipolar, ac/dc and inverting/ non-inverting. The HCNR200/201 is an excellent solution for many analog isola tion problems.

Features

• Low nonlinearity: 0.01%
• K₃ (I_PD2/I_PD1) transfer gain
  • HCNR200: ±15%
  • HCNR201: ±5%
• Low gain temperature coeffi cient: -65 ppm/°C
• Wide bandwidth – DC to >1 MHz

• Worldwide safety approval
  • – UL 1577 recognized (5 kV rms/1 min rating)
  • – CSA approved
  • – IEC/EN/DIN EN 60747-5-2 approved VIORM = 1414 V peak (option #050)
• Surface mount option available (Option #300)
• 8-Pin DIP package - 0.400” spacing
• Allows fl exible circuit design

Applications

• Low cost analog isolation
• Telecom: Modem, PBX
• Industrial process control:
  • Transducer isolator
  • Isolator for thermo couples 4 mA to 20 mA loop isolation
• SMPS feedback loop, SMPS feedforward
• Monitor motor supply voltage  Medical

Absolute Maximum Ratings

Storage Temperature ..............................................................................................-55°C to +125°C Operating Temperature (TA) ................................................................................. -55°C to +100°C Junction Temperature (TJ ) .................................................................................................... 125°C

Reflow Temperature Profile .................................................See Package Outline Drawings Section

Lead Solder Temperature ............................................................................................260°C for 10s

   (up to seating plane)

Average Input Current - I_F ........................................................................................................ 25 mA

Peak Input Current - I_F ............................................................................................................. 40 mA

   (50 ns maximum pulse width)

Reverse Input Voltage - V_R .........................................................................................................2.5 V

   (I_R = 100 μA, Pin 1-2)

Input Power Dissipation .................................................................................... 60 mW @ T_A = 85°C

   (Derate at 2.2 mW/°C for operating temperatures above 85°C)

Reverse Output Photodiode Voltage ........................................................................................30 V

   (Pin 6-5)

Reverse Input Photodiode Voltage ............................................................................................30 V

   (Pin 3-4)

Recommended Operating Conditions

Storage Temperature .................................................................................................-40°C to +85°C

Operating Temperature ..............................................................................................-40°C to +85°C

Average Input Current - I_F .................................................................................................. 1 - 20 mA

Peak Input Current - I_F ............................................................................................................. 35 mA

   (50% duty cycle, 1 ms pulse width)

Reverse Output Photodiode Voltage ..................................................................................0 - 15 V

   (Pin 6-5)

Reverse Input Photodiode Voltage ......................................................................................0 - 15 V

   (Pin 3-4)

Schematic

Package Outline Drawings

Gull Wing Surface Mount Option #300
