AT91SAM7X128-AU integrated components Integrated Circuit Chip

China AT91SAM7X128-AU integrated components Integrated Circuit Chip supplier

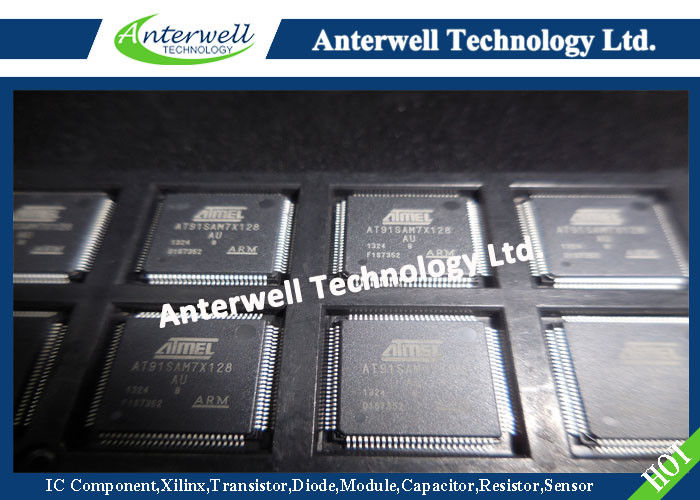

Large Image :  AT91SAM7X128-AU integrated components Integrated Circuit Chip

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: AT91SAM7X128-AU

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 7600pcs
Contact Now
Detailed Product Description
Voltage Regulator And ADC Power Supply Input: 3V To 3.6V Voltage Regulator Output: 1.85V
Flash And USB Power Supply: 3V To 3.6V I/O Lines Power Supply: 3V To 3.6V
Core Power Supply: 1.65V To 1.95V PLL: 1.65V To 1.95V
High Light:

digital integrated circuits

,

linear integrated circuits



Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
OP484F 2000 AD 15+ SOP-14
P6KE13CA 2000 VISHAY 16+ DO-15
SJA1000T 2000 NXP 16+ SOP28
SN74AHC245PWR 2000 TI 14+ TSSOP
SN74HC14N 2000 TI 14+ DIP
SN74HC273PWR 2000 TI 14+ TSSOP
SS32 A 2000 VISHAY 16+ DO-214AC
STF11NM60N 2000 ST 16+ TO-220F
SY100EP11UKG 2000 MICREL 13+ MSOP-8
TAS5342ADDVR 2000 TI 15+ HTSSOP-44
TDA7050T 2000 NXP 16+ SOP8
TJA1040T 2000 NXP 16+ SOP-8
TPS54332DDAR 2000 TI 14+ SOP8
HEF4051 2005 NXP 14+ SOP-16
ZTX951 2005 ZETEX 14+ TO-92
UC3879N 2008 TI 16+ DIP
LM2576HVT-ADJ 2010 NS 16+ TO220
SN74HC02N 2010 TI 13+ DIP
AT93C46DN-SH-T 2027 ATMEL 15+ SOP8
40CPQ100PBF 2055 VISHAY 16+ TO-247
LPC1752FBD80 2080 NXP 16+ LQFP80
PIC16F1934-I/PT 2080 MICROCHIP 14+ QFP
1N5362B 2100 ON 14+ DIP
6N137SD 2100 FSC 14+ SOP8
CD4047BM96 2100 TI 16+ SOP
FSDL0165RN 2100 FSC 16+ DIP-8
ISD17240PY 2100 ISD 13+ DIP28
MC34063 2100 ON 15+ SOP8
MDP13N50TH 2100 MAGNACHIP 16+ TO-220
PIC16F72-I/SP 2100 MICROCHIP 16+ DIP-28





Product Description
AT91SAM7X512 AT91SAM7X256 AT91SAM7X128

Features
• Incorporates the ARM7TDMI® ARM® Thumb® Processor
  – High-performance 32-bit RISC Architecture
  – High-density 16-bit Instruction Set


• Leader in MIPS/Watt
  – EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support


• Internal High-speed Flash
  – 512 Kbytes (AT91SAM7X512) Organized in Two Banks of 1024 Pages of 256 Bytes (Dual Plane)
  – 256 Kbytes (AT91SAM7X256) Organized in 1024 Pages of 256 Bytes (Single Plane)
  – 128 Kbytes (AT91SAM7X128) Organized in 512 Pages of 256 Bytes (Single Plane)


• Single Cycle Access at Up to 30 MHz in Worst Case Conditions
• Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed
• Page Programming Time: 6 ms, Including Page Auto-erase, Full Erase Time: 15 ms


• 10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities, Flash Security Bit
• Fast Flash Programming Interface for High Volume Production


• Internal High-speed SRAM, Single-cycle Access at Maximum Speed
  – 128 Kbytes (AT91SAM7X512)
  – 64 Kbytes (AT91SAM7X256)
  – 32 Kbytes (AT91SAM7X128)


• Memory Controller (MC)
  – Embedded Flash Controller, Abort Status and Misalignment Detection


• Reset Controller (RSTC)
  – Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
  – Provides External Reset Signal Shaping and Reset Source Status


• Clock Generator (CKGR)
  – Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and one PLL


• Power Management Controller (PMC)
  – Power Optimization Capabilities, Including Slow Clock Mode (Down to 500 Hz) and Idle Mode
  – Four Programmable External Clock Signals


• Advanced Interrupt Controller (AIC)
  – Individually Maskable, Eight-level Priority, Vectored Interrupt Sources
  – Two External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt Protected


• Debug Unit (DBGU)
  – 2-wire UART and Support for Debug Communication Channel interrupt,
     Programmable ICE Access Prevention


• Periodic Interval Timer (PIT)
  – 20-bit Programmable Counter plus 12-bit Interval Counter


• Windowed Watchdog (WDT)
  – 12-bit key-protected Programmable Counter
  – Provides Reset or Interrupt Signals to the System
  – Counter May Be Stopped While the Processor is in Debug State or in Idle Mode


• Real-time Timer (RTT)
  – 32-bit Free-running Counter with Alarm
  – Runs Off the Internal RC Oscillator


• Two Parallel Input/Output Controllers (PIO)
  – Sixty-two Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os
  – Input Change Interrupt Capability on Each I/O Line
  – Individually Programmable Open-drain, Pull-up Resistor and Synchronous Output


• Thirteen Peripheral DMA Controller (PDC) Channels
• One USB 2.0 Full Speed (12 Mbits per second) Device Port
  – On-chip Transceiver, 1352-byte Configurable Integrated FIFOs


• One Ethernet MAC 10/100 base-T
  – Media Independent Interface (MII) or Reduced Media Independent Interface (RMII)
  – Integrated 28-byte FIFOs and Dedicated DMA Channels for Transmit and Receive


• One Part 2.0A and Part 2.0B Compliant CAN Controller
  – Eight Fully-programmable Message Object Mailboxes, 16-bit Time Stamp Counter


• One Synchronous Serial Controller (SSC)
  – Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
  – I²S Analog Interface Support, Time Division Multiplex Support
  – High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer


• Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
  – Individual Baud Rate Generator, IrDA® Infrared Modulation/Demodulation
  – Support for ISO7816 T0/T1 Smart Card, Hardware Handshaking, RS485 Support
  – Full Modem Line Support on USART1


• Two Master/Slave Serial Peripheral Interfaces (SPI)
  – 8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects


• One Three-channel 16-bit Timer/Counter (TC)
  – Three External Clock Inputs, Two Multi-purpose I/O Pins per Channel
  – Double PWM Generation, Capture/Waveform Mode, Up/Down Capability


• One Four-channel 16-bit Power Width Modulation Controller (PWMC)
• One Two-wire Interface (TWI)
  – Master Mode Support Only, All Two-wire Atmel EEPROMs and I2 C Compatible Devices Supported


• One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
• SAM-BA™ Boot Assistance
  – Default Boot program
  – Interface with SAM-BA Graphic User Interface


• IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
• 5V-tolerant I/Os, Including Four High-current Drive I/O lines, Up to 16 mA Each


• Power Supplies
  – Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
  – 3.3V VDDIO I/O Lines Power Supply, Independent 3.3V VDDFLASH Flash Power Supply
  – 1.8V VDDCORE Core Power Supply with Brownout Detector


• Fully Static Operation: Up to 55 MHz at 1.65V and 85°C Worst Case Conditions
• Available in 100-lead LQFP Green and 100-ball TFBGA Green Packages

AT91SAM7X512/256/128 Block Diagram
