|Supply Voltage:||-1~7 V||Storage Temperature:||-65~+150 °С|
|Ambient Operating Temperature:||-20~+60 °С||Voltage At Pin 3:||-1~VCC+1 V|
|Voltage At Pin 12 ( Mute):||-1~VCC +1 V||Voltage At Pin 13 ( VLC):||-1~VCC+0.5 V|

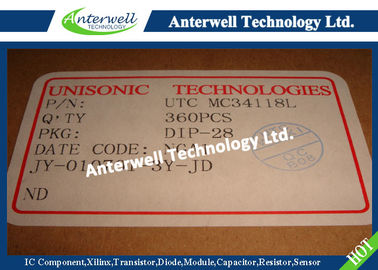

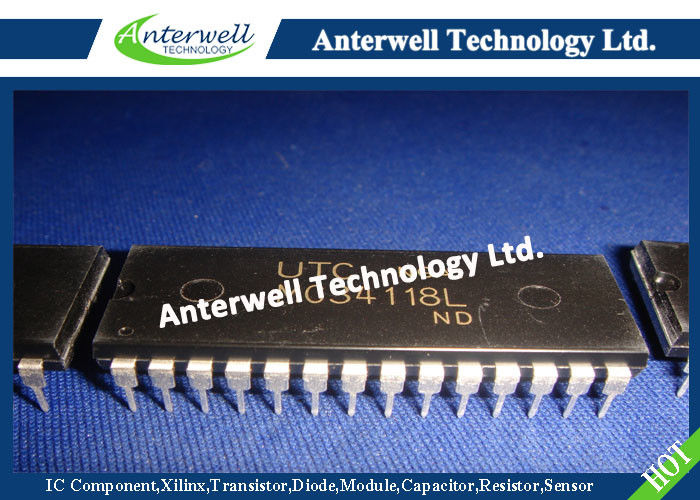

MC34118 LINEAR INTEGRATED CIRCUIT
VOICE SWITCHED SPEAKER-PHONE CIRCUIT
As a voice switched speaker-phone integrated circuit, the UTC MC34118 includes the necessary amplifiers, attenuators, level detectors and control algorithm.
To form the UTC MC34118’s internal circuit, there is an internal microphone amplifier with adjustable gain and mute control, internal transmit and Receive attenuators (operate in a complementary manner), level detectors at both input and output of both attenuators, and background noise monitors for both the transmit and receive channels.
The dial tone can be pretended from being attenuated by the receive background noise monitor circuit by a dial tone detector. There are also two line driver amplifiers which can be used to form a hybrid network in conjunction with an external coupling transformer. A high-pass filter can be used for other filtering functions, and especially to filter out 60Hz noise in the receive channel.
The UTC MC34118 which requiring typically 5mA may be operated from a power supply, or it can be powered from the telephone line.
* Attenuator gain range: 52dB (between Transmit and Receive)
* For line-powered applications : 3~6.5V low voltage operation
* For improved sensitivity :4-point signal sensing
* For Transmit and Receive paths: background noise monitors
* External resistors set microphone amplifier gain
* Mute function included
* Chip disable: active or standby operation
* During dial tone presence: dial tone detector to inhibit receive idle mode
|Normal||Lead Free Plating||Halogen Free|
ABSOLUTE MAXIMUM RATING (Ta=25°С,Voltages referred to pin 22)
|Voltage at Pin 3||V3||-1~VCC+1||V|
|Voltage at Pin 12 ( mute)||V12||-1~VCC +1||V|
|Voltage at Pin 13 ( VLC)||V13||-1~VCC+0.5||V|
|Voltage at Pin 9, Pin 21, and Pin 2||V9, 21, 2||-0.5~ VCC+0.5||V|
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
TYPICAL APPLICATION CIRCUIT
