CNY17-4 Electronics Components , electronic devices and integrated circuits Phototransistor Optocouplers

China CNY17-4 Electronics Components , electronic devices and integrated circuits Phototransistor Optocouplers supplier

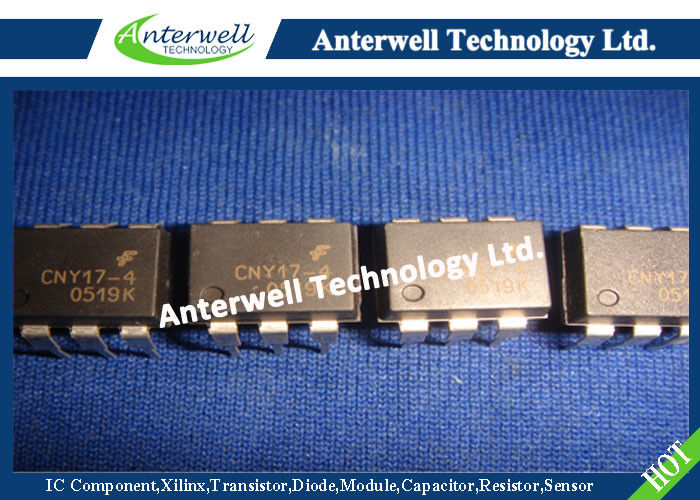

Large Image :  CNY17-4 Electronics Components , electronic devices and integrated circuits Phototransistor Optocouplers

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: CNY17-4

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8300pcs
Contact Now
Detailed Product Description
Storage Temperature: -55 To +150 °C Operating Temperature: 55 To +100 °C
Lead Solder Temperature: 260°C For 10 Sec Reverse Voltage: 6 V
Reverse Leakage Current: 0.001 µA Breakdown Voltage Collector To Emitter: 100 V


CNY17-4 Electronics Components , electronic devices and integrated circuits Phototransistor Optocouplers
Phototransistor Optocouplers

Features
■ CNY17-1/2/3 are also available in white package by specifying -M suffix (eg. CNY17-2-M)
■ UL recognized (File # E90700)
■ VDE recognized
    – 102497 for white package
    – Add option V for white package (e.g., CNY17-2V-M)
    – File #102497
    – Add option ‘300’ for black package (e.g., CNY17-2.300)
    – File #94766
■ Current transfer ratio in select groups
■ High BVCEO—70V minimum

Applications
■ Power supply regulators
■ Digital logic inputs
■ Microprocessor inputs
■ Appliance sensor systems
■ Industrial controls

Description
The CNY17 series consists of a Gallium Arsenide IRED coupled with an NPN phototransistor.

    White Package (-M Suffix)                                     Black Package (No -M Suffix)
CNY17-4 Electronics Components , electronic devices and integrated circuits Phototransistor Optocouplers
Schematic
CNY17-4 Electronics Components , electronic devices and integrated circuits Phototransistor Optocouplers

ParametersSymbolDeviceValueUnits
TOTAL DEVICE
Storage TemperatureTSTGAll-55 to +150°C
Operating TemperatureTOPRAll-55 to +100°C
Lead Solder TemperatureTSOLAll260 for 10 sec°C

Total Device Power Dissipation @ 25°C (LED plus detector)

Derate Linearly From 25°C



PD-M250mW
non -M260
-M2.94mW/°C
non -M3.50
EMITTER
Continuous Forward CurrentIF-M60mA
non -M90
Reverse VoltageVRAll6V
Forward Current - Peak (1 µs pulse, 300 pps)IF (pk)-M1.5A
non -M3.0

LED Power Dissipation 25°C Ambient

Derate Linearly From 25°C

PD-M120mW
non -M135
-M1.41mW/°C
non -M1.8
DETECTOR

Detector Power Dissipation @ 25°C

Derate Linearly from 25°C

PD-M150mW
non -M200
-M1.76mW/°C
non -M2.76
