SN74LS244N Digital Microwave Integrated Circuits Octal Buffers And Line Drivers 3 State Outputs

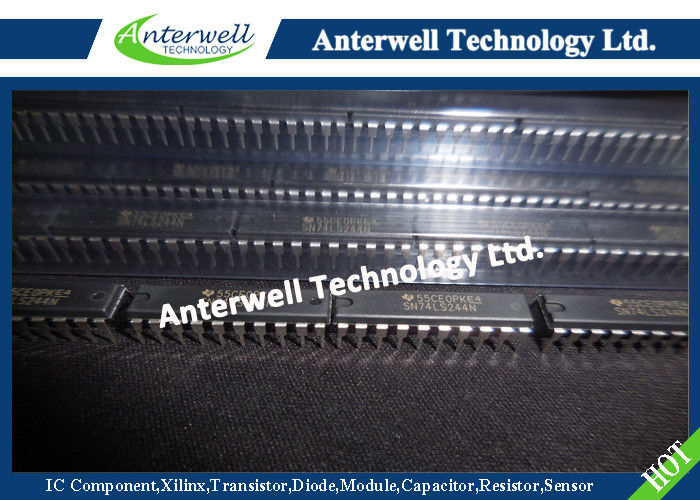

: Large Image : SN74LS244N Digital Microwave Integrated Circuits Octal Buffers And Line Drivers 3 State Outputs

Product Details:

Place of Origin:	Original
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	SN74LS244N

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Supply Voltage, VCC:	7 V	Input Voltage, VI:	7 V
Off-state Output Voltage:	5.5 V	Package Thermal Impedance,:	70 °C/W
Storage Temperature Range, Tstg:	−65 °C To 150°C
High Light:	chip in electronics , small scale integrated circuits

SN74LS244N Digital Microwave Integrated Circuits Octal Buffers And Line Drivers 3 State Outputs

SN74LS244N Digital Microwave Integrated Circuits Octal Buffers And Line Drivers 3 State Outputs ►3-State Outputs Drive Bus Lines or Buffer Memory Address Registers

►PNP Inputs Reduce DC Loading

►Hysteresis at Inputs Improves Noise Margins

description

These octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS’ and SN74S’ devices can be used to drive terminated lines down to 133 Ω.

absolute maximum ratings over operating free-air temperature range

Supply voltage, VCC (see Note 1)	7 V
Input voltage, VI:: ’LS ’S	7 V 5.5 V
Off-state output voltage	5.5 V
Package thermal impedance, θJA (see Note 2):DB package DW package N package NS package	70°C/W 58°C/W 69°C/W 60°C/W
Storage temperature range, Tstg .	–65°C to 150°C

SN74LS244N Digital Microwave Integrated Circuits Octal Buffers And Line Drivers 3 State Outputs
