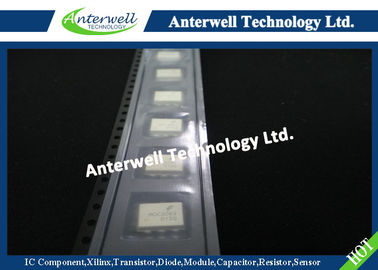

MOC3063 amplifier ic chip Integrated Circuit Chip 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output

6-Pin DIP Zero-Cross Optoisolators Triac Driver Output

(600 Volts Peak)

The MOC3061, MOC3062 and MOC3063 devices consist of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers.

They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.

• Simplifies Logic Control of 115/240 Vac Power

• Zero Voltage Crossing

• dv/dt of 1500 V/µs Typical, 600 V/µs Guaranteed

• To order devices that are tested and marked per VDE 0884 requirements, the suffix ”V” must be included at end of part number. VDE 0884 is a test option.

Recommended for 115/240 Vac(rms) Applications:

• Solenoid/Valve Controls

• Temperature Controls

• Lighting Controls

• E.M. Contactors

• Static Power Switches

• AC Motor Starters

• AC Motor Drives

• Solid State Relays

MAXIMUM RATINGS

1. Isolation surge voltage, VISO, is an internal device dielectric breakdown rating. 1. For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.

2. Refer to Quality and Reliability Section in Opto Data Book for information on test conditions.

PACKAGE DIMENSIONS
