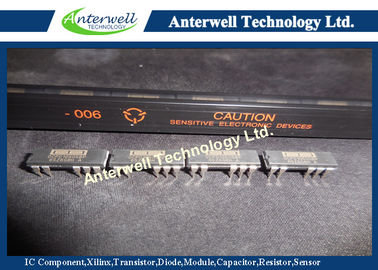

DCP010505BP

Miniature, 1W Isolated UNREGULATED DC/DC CONVERTERS

FEATURES

Up To 85% Efficiency

Thermal Protection

Device-to-Device Synchronization

Short-Circuit Protection

EN55022 Class B EMC Performance

UL1950 Recognized Component

JEDEC DIP-14 and SOP-14 Packages

APPLICATIONS

Point-of-Use Power Conversion

Ground Loop Elimination

Data Acquisition
Industrial

Control and Instrumentation
Test Equipment

DESCRIPTION

The DCP01B series is a family of 1W, unregulated, isolated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP01B series provides extra features such as output disable and synchronization of switching frequencies. The use of a highly-integrated package design results in highly reliable products with a power density of 40W/in3 (2.4W/cm3). This combination of features and small sizes makes the DCP01B suitable for a wide range of applications

ABSOLUTE MAXIMUM RATINGS

over operating free-air temperature range unless otherwise noted
