ULN2003ADR2G popular integrated circuits complex integrated circuits High Voltage, High Current Darlington Transistor A

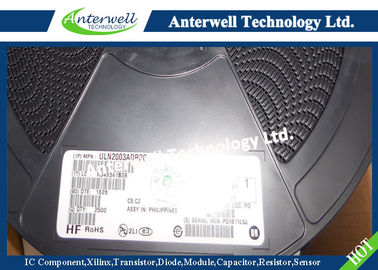

Large Image : ULN2003ADR2G popular integrated circuits complex integrated circuits High Voltage, High Current Darlington Transistor A

Product Details:

Place of Origin:	Original
Brand Name:	ONSEMI
Certification:	Original Factory Pack
Model Number:	ULN2003ADR2G

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

VO:	50 V	VI:	30 V
C:	500 MA	IB:	25 MA
TA:	-20 To +85 C
High Light:	digital integrated circuits , linear integrated circuits

High Voltage, High Current Darlington Transistor Arrays

ULN2003ADR2G popular integrated circuits complex integrated circuits High Voltage, High Current Darlington Transistor A The seven NPN Darlington connected transistors in these arrays are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit them to drive incandescent lamps.

The ULx2003A with a 2.7 k series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.

Features

•These are Pb-Free Devices

MAXIMUM RATINGS

(TA = 25°C, and rating apply to any one device in the package, unless otherwise noted.)

Rating	Symbol	Value	Unit
Output Voltage	V_O	50	V
Input Voltage	V_I	30	V
Collector Current - Continuous	I_C	500	mA
Base Current - Continuous	I_B	25	mA
Operating Ambient Temperature Range	TA	-20 to +85	°C
Storage Temperature Range	Tstg	-55 to +150	°C
Junction Temperature	T_J	150	°C
