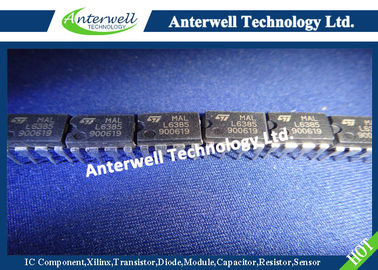

L6385D electronic integrated circuit Integrated Circuit Chip HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER

: Large Image : L6385D electronic integrated circuit Integrated Circuit Chip HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	L6385D

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8200pcs

Contact Now

Detailed Product Description

Output Voltage:	-3 To Vboot - 18 V	Supply Voltage:	- 0.3 To +18 V
Floating Supply Voltage:	- 1 To 618 V	Upper Gate Output Voltage:	- 1 To Vboot V
Allowed Output Slew Rate:	50 V/ns	Junction Temperature:	150 °C
Highlight:	chip in electronics , integrated components

L6385

HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER

HIGH VOLTAGE RAIL UP TO 600 V
dV/dt IMMUNITY +- 50 V/nsec IN FULL TEMPERATURE RANGE
DRIVER CURRENT CAPABILITY:
- 400 mA SOURCE,
- 650 mA SINK
SWITCHING TIMES 50/30 nsec RISE/FALL WITH 1nF LOAD
CMOS/TTL SCHMITT TRIGGER INPUTS WITH HYSTERESIS AND PULL DOWN
UNDER VOLTAGE LOCK OUT ON LOWER AND UPPER DRIVING SECTION
INTERNAL BOOTSTRAP DIODE
OUTPUTS IN PHASE WITH INPUTS

DESCRIPTION

The L6385 is an high-voltage device, manufactured with the BCD"OFF-LINE" technology. It has a Driver structure that enables to drive independent referenced N Channel Power MOS or IGBT. The Upper (Floating) Section is enabled to work with voltage Rail up to 600V. The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter	Value	Unit
Vout	Output Voltage	-3 to Vboot - 18	V
Vcc	Supply Voltage	- 0.3 to +18	V
Vboot	Floating Supply Voltage	- 1 to 618	V
Vhvg	Upper Gate Output Voltage	- 1 to Vboot	V
Vlvg	Lower Gate Output Voltage	-0.3 to Vcc +0.3	V
Vi	Logic Input Voltage	-0.3 to Vcc +0.3	V
dVout/dt	Allowed Output Slew Rate	50	V/ns
Ptot	Total Power Dissipation (Tj = 85 °C)	750	mW
Tj	Junction Temperature	150	°C
Ts	Storage Temperature	-50 to 150	°C

Note: ESD immunity for pins 6, 7 and 8 is guaranteed up to 900V (Human Body Model)

BLOCK DIAGRAM

L6385D electronic integrated circuit Integrated Circuit Chip HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER

PIN CONNECTION

L6385D electronic integrated circuit Integrated Circuit Chip HIGH-VOLTAGE HIGH AND LOW SIDE DRIVER
