Product Details:
Payment & Shipping Terms:
|
| Power Supply Voltage: | 45 V | Reverse Supply Voltage: | -0.3 V |
|---|---|---|---|
| Reverse Output Current: | -6 A | Input Current: | ±10 MA |
| Electrostatic Discharge (1.5 KΩ, 100 PF): | 2000 V | Storage Temperature: | -55 To 150℃ |
| High Light: | electronic integrated circuit,digital integrated circuits |
||

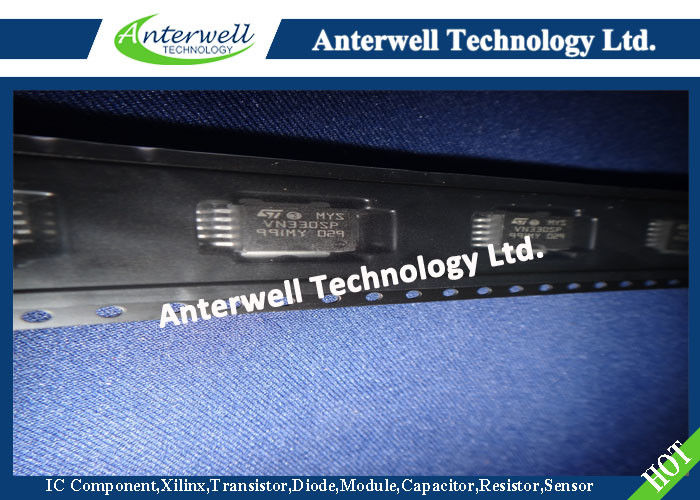

VN330SP
QUAD HIGH SIDE SMART POWER SOLID STATE RELAY
| TYPE | Vdemag * | RDS(on) * | IOUT * | VCC |
| VN330SP | VCC-55V | 0.32 Ω** | 0.7 A | 36 V |
* per Channel
** at TJ = 85 ℃
■ OUTPUT CURRENT: 0.7A PER CHANNEL
■ DIGITAL INPUTS CLAMPED AT 32V MINIMUM VOLTAGE
■ SHORTED LOAD AND OVERTEMPERATURE PROTECTIONS
■ BUILT-IN CURRENT LIMITER
■ UNDER VOLTAGE SHUT DOWN
■ OPEN DRAIN DIAGNOSTIC OUTPUT
■ FAST DEMAGNETIZATION OF INDUCTIVE LOADS
DESCRIPTION
The VN330SP is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving four indipendent resistive or inductive loads with one side connected to ground.
Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from over temperature and short circuit.
The open drain diagnostic output indicates short circuit and overtemperatureconditions.
ABSOLUTE MAXIMUM RATING
| Symbol | Parameter | Value | Unit |
| VCC | Power Supply Voltage | 45 | V |
| -VCC | Reverse Supply Voltage | -0.3 | V |
| IOUT | Output Current (cont.) | Internally Limited | A |
| IR | Reverse Output Current (per channel) | -6 | A |
| IIN | Input Current (per channel) | ±10 | mA |
| IDIAG | DIAG Pin Current | ±10 | mA |
| VESD | Electrostatic Discharge (1.5 kΩ, 100 pF) | 2000 | V |
| EAS | Single Pulse Avalanche Energy per Channel Not Symultaneously (see figure 1) | 400 | mJ |
| Ptot | Power Dissipation at Tc ≤ 25 ℃ | Internally Limited | W |
| Tj | Junction Operating Temperature | Internally Limited | ℃ |
| Tstg | Storage Temperature | -55 to 150 | ℃ |
BLOCK DIAGRAM
FIGURE 1: Avalanche Energy Test Circit
FIGURE 2: Peak Short Circuit Current Test Circit
