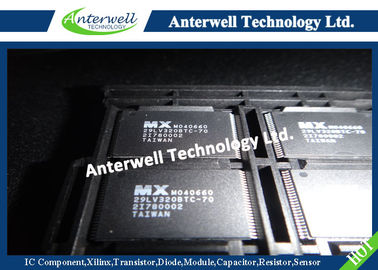

MX29LV320BTC-70 Integrated Circuit Chip 32 BIT 4M X 8 / 2M X 16 ] SINGLE VOLTAGE 3V ONLY FLASH MEMORY



32M-BIT [4M x 8 / 2M x 16] SINGLE VOLTAGE 3V ONLY FLASH MEMORY



FEATURES

GENERAL FEATURES

• 4,194,304 x 8 / 2,097,152 x 16 switchable

• Sector Structure

  - 8K-Byte x 8 and 64K-Byte x 63

• Extra 64K-Byte sector for security

  - Features factory locked and identifiable, and customer lockable

• Twenty-Four Sector Groups

  - Provides sector group protect function to prevent program or erase operation in the protected

    sector group

  - Provides chip unprotect function to allow code changing

  - Provides temporary sector group unprotect function for code changing in previously protected

    sector groups

• Single Power Supply Operation

  - 2.7 to 3.6 volt for read, erase, and program operations

• Latch-up protected to 250mA from -1V to Vcc + 1V

• Low Vcc write inhibit is equal to or less than 1.4V

• Compatible with JEDEC standard

  - Pinout and software compatible to single power supply Flash



PERFORMANCE

• High Performance

  - Fast access time: 70/90/120ns

  - Fast program time: 7us/word typical utilizing accelerate function

  - Fast erase time: 1.6s/sector, 112s/chip (typical)

• Low Power Consumption

  - Low active read current: 10mA (typical) at 5MHz

  - Low standby current: 200nA (typical)

• Minimum 100,000 erase/program cycle

• 10-year data retention



SOFTWARE FEATURES

• Erase Suspend/ Erase Resume

  - Suspends sector erase operation to read data from or program data to another sector which is

    not being erased

• Status Reply

  - Data polling & Toggle bits provide detection of program and erase operation completion

• Support Common Flash Interface (CFI)



HARDWARE FEATURES

• Ready/Busy (RY/BY) Output

  - Provides a hardware method of detecting program and erase operation completion

• Hardware Reset (RESET) Input

  - Provides a hardware method to reset the internal state machine to read mode

• WP/ACC input pin

  - Provides accelerated program capability



PACKAGE

• 48-Pin TSOP

• 48-Ball CSP



GENERAL DESCRIPTION

The MX29LV320T/B is a 32-mega bit Flash memory organized as 4M bytes of 8 bits and 2M words of 16 bits. MXIC's Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29LV320T/B is packaged in 48-pin TSOP and 48-ball CSP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.

The standard MX29LV320T/B offers access time as fast as 70ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the MX29LV320T/B has separate chip enable (CE) and output enable (OE) controls.

MXIC's Flash memories augment EPROM functionality with in-circuit electrical erasure and programming. The MX29LV320T/B uses a command register to manage this functionality.

MXIC Flash technology reliably stores memory contents even after 100,000 erase and program cycles. The MXIC cell is designed to optimize the erase and program mechanisms. In addition, the combination of advanced tunnel oxide processing and low internal electric fields for erase and programming operations produces reliable cycling.

The MX29LV320T/B uses a 2.7V to 3.6V VCC supply to perform the High Reliability Erase and auto Program/Erase algorithms.

The highest degree of latch-up protection is achieved with MXIC's proprietary non-epi process. Latch-up protection is proved for stresses up to 100 milliamperes on address and data pin from -1V to VCC + 1V.



ABSOLUTE MAXIMUM RATINGS

Storage Temperature

Plastic Packages . . . . . . . . . . . . . ..... -65℃ to +150℃

Ambient Temperature

with Power Applied. . . . . . . . . . . . . .... -65℃ to +125℃

Voltage with Respect to Ground

   VCC (Note 1) . . . . . . . . . . . . . . . . . -0.5 V to +4.0 V

   A9, OE, and

   RESET (Note 2) . . . . . . . . . . . ....-0.5 V to +12.5 V

   All other pins (Note 1) . . . . . . . -0.5 V to VCC +0.5 V

Output Short Circuit Current (Note 3) . . . . . . 200 mA



Notes:

1. Minimum DC voltage on input or I/O pins is -0.5 V. During voltage transitions, input or I/O pins may overshoot VSS to -2.0 V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC +0.5 V. During voltage transitions, input or I/O pins may overshoot to VCC +2.0 V for periods up to 20 ns.

2. Minimum DC input voltage on pins A9, OE, and RESET is -0.5 V. During voltage transitions, A9, OE, and RESET may overshoot VSS to -2.0 V for periods of up to 20 ns. Maximum DC input voltage on pin A9 is +12.5 V which may overshoot to 14.0 V for periods up to 20 ns.

3. No more than one output may be shorted to ground at a time. Duration of the short circuit should not be greater than one second.

Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this data sheet is not implied. Exposure of the device to absolute maximum rating conditions for extended periods may affect device reliability.



OPERATING RATINGS

Commercial (C) Devices

Ambient Temperature (TA ). . . . . . . . . . . . 0°C to +70°C

Industrial (I) Devices

Ambient Temperature (TA ). . . . . . . . . . -40°C to +85°C

VCC Supply Voltages

VCC for full voltage range. . . . . . . . . . . +2.7 V to 3.6 V



Operating ranges define those limits between which the functionality of the device is guaranteed.



PIN CONFIGURATION

48 TSOP



BLOCK DIAGRAM
