ICE1QS01 ic integrated circuit Controller for Switch Mode Power Supplies , Low Power Standby

China ICE1QS01 ic integrated circuit Controller for Switch Mode Power Supplies , Low Power Standby supplier

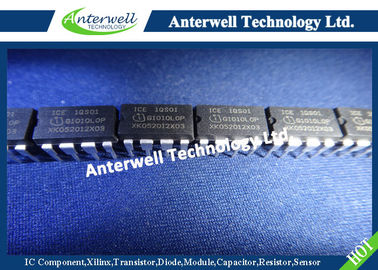

Large Image :  ICE1QS01 ic integrated circuit Controller for Switch Mode Power Supplies , Low Power Standby

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: ICE1QS01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5600pcs
Contact Now
Detailed Product Description
Charge Current Into Pin2: 500 UA Voltage At Pin 2: -0.3 To 21 V
Voltage At Pin 5: -0.3 To 6 V ESD Protection: 4000 V
Storage Temperature: -50 To 150 °C Operating Junction Temperature: -25 To 150 °C
High Light:

small scale integrated circuits

,

integrated components



ICE 1QS01 Controller for Quasiresonant Switch Mode Power Supplies Supporting Low Power Standby and Power Factor Correction



Features

• Quasiresonant Operation

• Primary and Secondary Regulation

• Primary Current Simulation

• Standby Input Power < 1 W

• Low Power Consumption

• Very Low Start-up Current

• Soft-Start for noiseless Start-up

• Standby Burst Mode with and without Control Signal for lowered Output Voltages

• Digital Frequency Reduction in small Steps at Decreasing Load

• Over- and Undervoltage Lockout

• Switch Off at Mains Undervoltage

• Mains Voltage Dependent Fold Back Point Correction

• Ringing Suppression Time Controlled from Output Voltage

• Free usable Fault Comparator



Functional Description

The ICE1QS01 is optimized to control free running flyback converters with and without Power Factor Correction (with PFC Charge Pump).

The switching frequency is reduced in small steps with decreasing load towards a minimum of 20 kHz in standby mode. This function is performed by a digital circuit to avoid any jitter also with periodically pulsed loads. To provide extremely low power consumption at light loads, this device can be switched into Standby Burst Mode. This is also possible without standby control signal (for adapter application).

Additionally, the start up current is very low. To avoid switching stresses of the power devices, the power transistor is always switched on at minimum voltage. The device has several protection functions: VCC overand undervoltage, mains undervoltage and current limiting. Regulation can be done by using the internal error amplifier or an opto coupler feedback. The output driver is ideally suited for driving a power MOSFET.

The ICE1QS01 is suited for TV-sets, DVD- sets, SAT- receivers and other consumer applications in the power range from 0 to app. 300 W.



Absolute Maximum Ratings

Parameter Symbol Min Max Unit Remark
Charge Current into Pin2 IPCS   500 uA During start up
Voltage at Pin 2 VPCS -0.3 21 V
Current into Pin 3

IRZI

IRZI



-10

10



mA

mA

VRZI>VRZICH
VRZI<VRZICL

Voltage at Pin 4 VSRC -0.3 VSRCCL V ISRC=100 µA
Voltage at Pin 5 VOFC -0.3 6 V
Current into Pin 7 IOUT -500 500 mA t<1ms
Voltage at Pin 8 VCC -0.3 21 V

ESD Protection     4000 V MIL STD 883C method 3015.6, 100pF,1500Ω
Storage Temperature Tstg -50 150 °C
Operating Junction Temperature TJ -25 150 °C
Thermal Resistance Junction-Ambient RthJA   100 K/W P-DIP-8



        P-DIP-8-4                                  P-DSO-8-3

ICE1QS01 ic integrated circuit Controller for Switch Mode Power Supplies , Low Power Standby                       ICE1QS01 ic integrated circuit Controller for Switch Mode Power Supplies , Low Power Standby



Block Diagram

ICE1QS01 ic integrated circuit Controller for Switch Mode Power Supplies , Low Power Standby

Pin Configuration (top view)

ICE1QS01 ic integrated circuit Controller for Switch Mode Power Supplies , Low Power Standby
