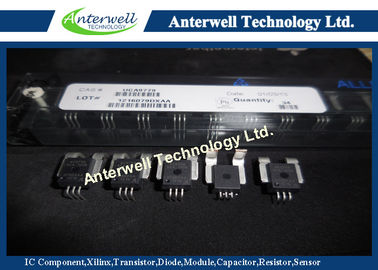

ACS756SCA-100B-PFF-T Pressure Sensor IC family of current sensor ICs Electronics IC Chip

China ACS756SCA-100B-PFF-T Pressure Sensor IC family of current sensor ICs Electronics IC Chip supplier

Large Image :  ACS756SCA-100B-PFF-T Pressure Sensor IC family of current sensor ICs Electronics IC Chip

Product Details:

Place of Origin: Malaysia
Brand Name: ALLEGRO
Certification: Original Factory Pack
Model Number: ACS756SCA-100B-PFF-T

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: REEL
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3200PCS
Contact Now
Detailed Product Description
Reinforced Isolation Voltage: 2100V Temperature: -40 °C To +85 °C
Output Current: 3-10mA Main Line:: Ic,module,transistor,diodes,capacitor,resistor Etc
Package: SOP-8 Factory Pack: REEL
High Light:

temperature sensor ic

,

hall effect sensor ic

ACS756SCA-100B-PFF-T



Fully Integrated, Hall Effect-Based Linear Current Sensor IC with 3 kVRMS Voltage Isolation and a Low-Resistance Current Conductor



The Allegro ACS756 family of current sensor ICs provides economical and precise solutions for AC or DC current sensing in industrial, automotive, commercial, and communications systems.


Features and Benefits

▪ Low-noise analog signal path

▪ Device bandwidth is set via the new FILTER pin

▪ 5 μs output rise time in response to step input current

▪ 80 kHz bandwidth

▪ Total output error 1.5% at TA = 25°C

▪ Small footprint, low-profile SOIC8 package

▪ 1.2 mΩ internal conductor resistance

▪ 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8

▪ 5.0 V, single supply operation

▪ 66 to 185 mV/A output sensitivity

▪ Output voltage proportional to AC or DC currents

▪ Factory-trimmed for accuracy

▪ Extremely stable output offset voltage

▪ Nearly zero magnetic hysteresis

▪ Ratiometric output from supply voltage



Description

The Allegro® ACS712 provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. The device package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.

The device consists of a precise, low-offset, linear Hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.

Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer.

A precise, proportional voltage is provided by the low-offset, chopper-stabilized BiCMOS Hall IC, which is programmed for accuracy after packaging.

The output of the device has a positive slope (>VIOUT(Q)) when an increasing current flows through the primary copper conduction path (from pins 1 and 2, to pins 3 and 4), which is the path used for current sensing. The internal resistance of this conductive path is 1.2 mΩ typical, providing low power loss. The thickness of the copper conductor allows survival of the device at up to 5× overcurrent conditions.

The terminals of the conductive path are electrically isolated from the sensor leads (pins 5 through 8). This allows the ACS712 current sensor to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques.

The ACS712 is provided in a small, surface mount SOIC8 package. The leadframe is plated with 100% matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly processes. Internally, the device is Pb-free, except for flip-chip high-temperature Pb-based solder balls, currently exempt from RoHS. The device is fully calibrated prior to shipment from the factory.
