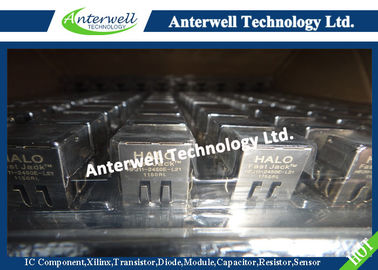

FastJack™ Single Port 10BASE-T RJ-45 Connectors
HALO is pleased to offer this complete range of single port Integrated RJ-45 connectors. The FastJack™ series integrates the high performance of HALO magnetics into an industry standard connector design. The result is an extremely robust, IEEE802.3 compliant, solution. Single and multi-port FastJacks™ are available for most 10BASE-T and 10/100BASE-TX IC’s.
Electrical Specifications @ 25°C
Operating Temp: 0 to +70°C
Isolation Voltage: 1,500 Vrms
Insertion Loss (5-10MHz): -1dB max
Return Loss (5-10MHz): -15dB min
Attenuation @ 30MHz
Transmit: -30dB min
Receive: -18dB min
Cut Off Freq. 17MHz typ
Crosstalk (1-10MHz): -30dB min
Mechanical Drawing
Recommended PCB Layout
Filter Circuit A Filter Circuit B
