TOP245PN Integrated Circuit TOPSwitch-GX Family Extended Power, Design Flexible, EcoSmart, Integrated Off-line Switcher

China TOP245PN Integrated Circuit TOPSwitch-GX Family Extended Power, Design Flexible, EcoSmart, Integrated Off-line Switcher supplier

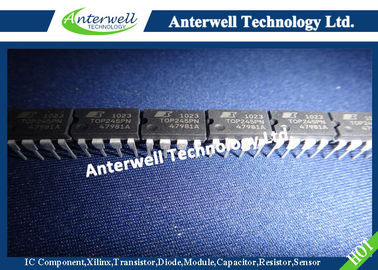

Large Image :  TOP245PN Integrated Circuit TOPSwitch-GX Family Extended Power, Design Flexible, EcoSmart, Integrated Off-line Switcher

Product Details:

Place of Origin: Philippines
Brand Name: POWERINT
Certification: Original Factory Pack
Model Number: TOP245PN

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: please contact me for details
Delivery Time: 1
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20000
Contact Now
Detailed Product Description
DRAIN Voltage: 0.3 V To 700 V CONTROL Voltage: -0.3 V To 9 V
CONTROL Current: 100 MA LINE SENSE Pin Voltage: . -0.3 V To 9 V
CURRENT LIMIT Pin Voltage: -0.3 V To 4.5 V



TOP242-250 TOPSwitch-GX Family



Extended Power, Design Flexible,



EcoSmart, Integrated Off-line Switcher

Description

TOPSwitch-GX uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to reduce system cost and improve design flexibility, performance and energy efficiency. Depending on package type, either 1 or 3 additional pins over the TOPSwitch standard DRAIN, SOURCE and CONTROL terminals allow the following functions: line sensing (OV/UV, line feed-forward/DCMAX reduction), accurate externally set current limit, remote ON/OFF, synchronization to an external lower frequency, and frequency selection (132 kHz/66 kHz). All package types provide the following transparent features: Soft-start, 132 kHz switching frequency (automatically reduced at light load), frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown, and larger creepage packages. In addition, all critical parameters (i.e. current limit, frequency, PWM gain) have tighter temperature and absolute tolerances to simplify design and optimize system cost.



Lower System Cost, High Design Flexibility

• Extended power range for higher power applications

• No heatsink required up to 34 W using P package

• Features eliminate or reduce cost of external components

• Fully integrated soft-start for minimum stress/overshoot

• Externally programmable accurate current limit

• Wider duty cycle for more power, smaller input capacitor

• Separate line sense and current limit pins on Y/R/F packages

• Line under-voltage (UV) detection: no turn off glitches

• Line overvoltage (OV) shutdown extends line surge limit

• Line feed-forward with maximum duty cycle (DCMAX) reduction

rejects line ripple and limits DCMAX at high line

• Frequency jittering reduces EMI and EMI filtering costs

• Regulates to zero load without dummy loading

• 132 kHz frequency reduces transformer/power supply size

• Half frequency option in Y/R/F packages for video applications

• Hysteretic thermal shutdown for automatic fault recovery

• Large thermal hysteresis prevents PC board overheating



EcoSmart - Energy Efficient

• Extremely low consumption in remote off mode (80 mW at 110 VAC, 160 mW at 230 VAC)

• Frequency lowered with load for high standby efficiency

• Allows shutdown/wake-up via LAN/input port



TOP245PN Integrated Circuit TOPSwitch-GX Family Extended Power, Design Flexible, EcoSmart, Integrated Off-line Switcher

CONTROL (C) Pin:

Error amplifier and feedback current input pin for duty cycle control. Internal shunt regulator connection to provide internal bias current during normal operation. It is also used as the connection point for the supply bypass and auto-restart/ compensation capacitor.



LINE-SENSE (L) Pin: (Y, R or F package only) Input pin for OV, UV, line feed forward with DCMAX reduction, remote ON/OFF and synchronization. A connection to SOURCE pin disables all functions on this pin.



EXTERNAL CURRENT LIMIT (X) Pin: (Y, R or F package only)

Input pin for external current limit adjustment, remote ON/OFF, and synchronization. A connection to SOURCE pin disables all functions on this pin.



MULTI-FUNCTION (M) Pin: (P or G package only) This pin combines the functions of the LINE-SENSE (L) and EXTERNAL CURRENT LIMIT (X) pins of the Y package into one pin. Input pin for OV, UV, line feed forward with DCMAX reduction, external current limit adjustment, remote ON/OFF and synchronization. A connection to SOURCE pin disables all functions on this pin and makes TOPSwitch-GX operate in simple three terminal mode (like TOPSwitch-II).

TOP245PN Integrated Circuit TOPSwitch-GX Family Extended Power, Design Flexible, EcoSmart, Integrated Off-line Switcher
