CPU: | 8-bit CPU×3 | RAM: | 2,048 Bytes |
---|---|---|---|
ROM: | ― | EEPROM: | 512 Bytes |
16-bit Timer / Counter: | 2 Channels | External Memory Interface: | Available |
High Light: | digital integrated circuits,linear integrated circuits |
TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
TMPN3150B1AFG

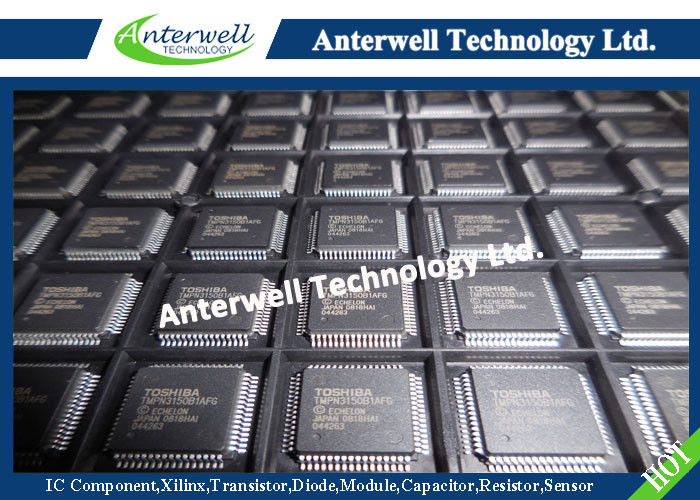

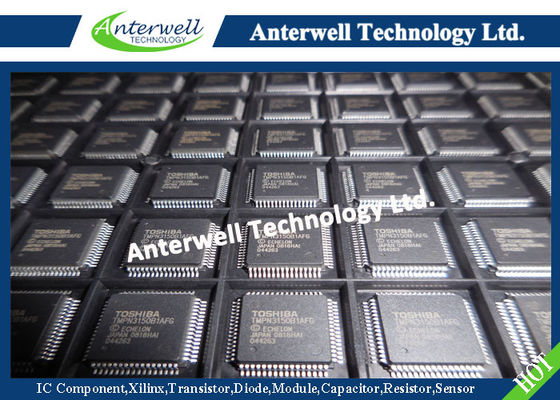

The TMPN3150B1AFG is a Neuron Chip which configures LONWORKS nodes in combination with external memory. Neuron Chips have all the built-in communications and control functions required to implement LONWORKS nodes. These nodes may then be easily integrated into highly-reliable distributed intelligent control networks. The typical functions for this chip are explained below.
FEATURES z I / O Functions • Eleven programmable I / O pins. • • • • • • • • • Two programmable 16-bit timers and counters built in. 34 different types of I / O functions to handle a wide range of input and output. ROM firmware image containing pre-programmed I / O drivers, greatly simplifying application programs. ( Stored in external ROM ) z Network functions Two CPUs for communication protocol processing built in. The communications and application CPUs execute in parallel. Equipped with a built-in LonTalk protocol which supports all seven levels of the OSI reference model with ISO. Highly reliable communication protocol is supplied as firmware. Built-in twisted-pair wire transceiver Equipped with communications modes and communication speeds which support various types of external transceivers. Supports twisted-pair wire, power line, radio ( RF ), infrared, coaxial cables and fiber optics. Communication port transceiver modes and logical addresses stored within the EEPROM. Can be amended via the network.
ITEM | SYMBOL | MIN | TYP. | MAX | UNIT |
Operating Voltage | VDD | 4.5 | 5.0 | 5.5 | V |
Input Voltage ( TTL ) | VIH(1) | 2.0 | ― | VDD | V |
V IL(1) | VSS | ― | 0.8 | V | |
Input Voltage ( CMOS ) | V IH(2) | VDD-0.8 | ― | VDD | V |
V IL(2) | VSS | ― | 0.8 | V |
