RTL8201BL Integrated Circuit Chip REALTEK SINGLE CHIP SINGLE PORT 10/100M FAST ETHERNET PHYCEIVER

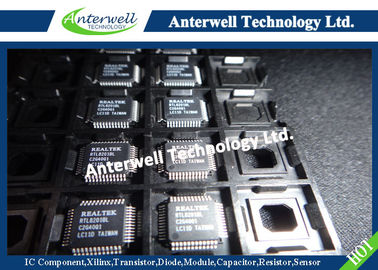

: Large Image : RTL8201BL Integrated Circuit Chip REALTEK SINGLE CHIP SINGLE PORT 10/100M FAST ETHERNET PHYCEIVER

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	RTL8201BL

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	4800pcs

Contact Now

Detailed Product Description

Supply Voltage:	3.3V	Storage Temp.:	-55°C To 125°C
Operating Temperature:	0°C To 70°C	Nominal Frequency:	25.000 MHz
Drive Level:	0.1 MV	Load Capacitance:	20 PF
High Light:	electronic integrated circuit , digital integrated circuits

REALTEK SINGLE CHIP SINGLE PORT 10/100M FAST ETHERNET PHYCEIVER RTL8201BL

Features

The Realtek RTL8201BL is a Fast Ethernet Phyceiver with selectable MII or SNI interface to the MAC chip. It provides the following features:

Supports MII/7-wire SNI (Serial Network Interface) interface
Supports 10/100Mbps operation
Supports half/full duplex operation
Support of twisted pair or Fiber mode output
IEEE 802.3/802.3u compliant
Supports IEEE 802.3u clause 28 auto negotiation
Supports power down mode
Supports operation under Link Down Power Saving mode
Supports Base Line Winder (BLW) compensation
Supports repeater mode
Speed/duplex/auto negotiation adjustable
3.3V operation with 5V IO signal tolerance
Low operation power consumption and only need single supply 3.3V
Adaptive Equalization
25MHz crystal/oscillator as clock source
Multiple network status LED support
Flow control ability support to co-work with MAC (by MDC/MDIO)
48 pin LQFP package

General Description

The RTL8201BL is a single-port Phyceiver with an MII (Media Independent Interface)/SNI(Serial Network Interface). It implements all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-Tx Encoder/Decoder and Twisted Pair Media Access Unit (TPMAU). A PECL interface is supported to connect with an external 100Base-FX fiber optical transceiver. The chip is fabricated with an advanced CMOS process to meet low voltage and low power requirements.

The RTL8201BL can be used as a Network Interface Adapter, MAU, CNR, ACR, Ethernet Hub, Ethernet Switch. Additionally, it can be used in any embedded system with an Ethernet MAC that needs a twisted pair physical connection or fiber PECL interface to external 100Base-FX optical transceiver module.

Absolute Maximum Ratings

Symbol	Conditions	Minimum	Typical	Maximum
Supply Voltage		3.0V	3.3V	3.6V
Storage Temp.		-55°C		125°C

Crystal Specifications

Item	Parameter	Range
1	Nominal Frequency	25.000 MHz
2	Oscillation Mode	Base wave
3	Frequency Tolerance at 25℃	±50 ppm
4	Temperature Characteristics	±50 ppm
5	Operating Temperature Range	-10℃ ~ +70℃
6	Equivalent Series Resistance	30 ohm Max.
7	Drive Level	0.1 mV
8	Load Capacitance	20 pF
9	Shunt Capacitance	7 pF Max.
10	Insulation Resistance	Mega ohm Min./DC 100V
11	Test Impedance Meter	Saunders 250A
12	Aging Rate A Year	±0.0003%
