Product Details:
Payment & Shipping Terms:
|
| Isolation Voltage: | 2500 (AC, 1min., R.H.≤ 60%) Vrms | Lead Soldering Temperature (10 S): | 260 °C |
|---|---|---|---|
| Storage Temperature Range: | -55~125 °C | Operating Temperature Range: | -55~100 °C |
| Collector Current: | 150 MA | Emitter Collector Valtage: | 0.3 V |
| Collector emitter Voltage: | 55 V | Reverse Voltage: | 5 V |
| High Light: | chip in electronics,integrated components |
||

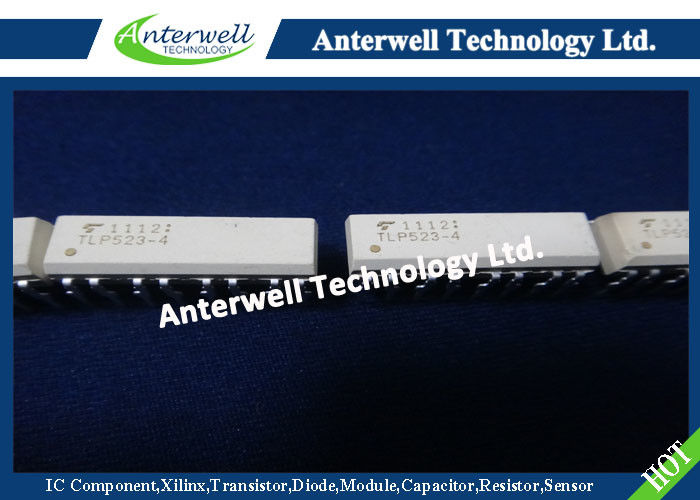

TOSHIBA Photocoupler GaAs Ired & Photo−Transistor
TLP523, TLP523−2, TLP523−4
Programmable Controllers DC−Output Module Solid State Relay
The TOSHIBA TLP523, −2 and −4 consists of a gallium arsenide infrared emitting diode coupled with a silicon, darlington connected, phototransistor which has an integral base−emitter resistor to optimize switching speed and elevated temperature characteristics.
The TLP523−2 offers two isolated channels in a eight lead plastic DIP package, while the TLP523−4 provide four isolated channels per package.
* Current transfer ratio: 500% (min.) (IF = 1 mA)
* Isolation voltage: 2500 Vrms (min.)
* Collector−emitter voltage: 55 V (min.)
* Leakage current: 10µA (max.) (Ta = 85°C)
* UL recognized: UL1577, file no. E67349 Pin
Pin Configurations (top view)
Absolute Maximum Ratings (Ta = 25°C)
| Characteristic | Symbol | Rating | Unit | ||
| TLP523 |
TLP523−2 TLP523-4 |
||||
| LED | Forward current | IF | 60 | 50 | mA |
| Forward current derating | ΔIF / °C | −0.7 (Ta ≥ 39°C) | −0.5 (Ta ≥ 25°C) | mA /°C | |
| Pulse forward current | IFP | 1 (100μs pulse, 100pps) | A | ||
| Reverse voltage | VR | 5 | V | ||
| Detector | Collector−emitter voltage | VCEO | 55 | V | |
| Emitter−collector voltage | VECO | 0.3 | V | ||
| Collector current | IC | 150 | mA | ||
| Collector power dissipation (1 circuit) | PC | 150 | 100 | mW | |
|
Collector power dissipation derating (1 circuit Ta ≥ 25°C) |
ΔPC / °C | -1.5 | -1.0 | mW /°C | |
| Storage temperature range | Tstg | −55~100 | °C | ||
| Operating temperature range | Topr | −55~125 | °C | ||
| Lead soldering temperature(10s) | Tsol | 260 | °C | ||
| Total power dissipation | PT | 250 | 150 | mW | |
|
Total power dissipation derating (Ta ≥ 25°C) |
ΔPT / °C | -2.5 | -1.5 | mW / °C | |
| Isolation voltage (Note 1) | BVS | 2500 (AC, 1min., R.H.≤ 60%) | Vrms |
||
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Note 1: Device considered a two terminal device: LED side pins shorted together and detector side pins shorted together.
