0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp

China 0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp supplier

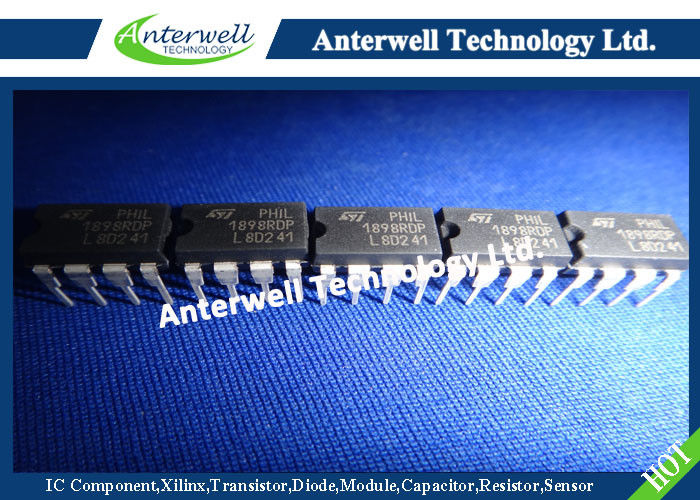

Large Image :  0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp

Product Details:

Place of Origin: Original
Brand Name: STMICROELECTRONICS
Certification: Original Factory Pack
Model Number: TDE1898RDP

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: please contact me for details
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 290PCS
Contact Now
Detailed Product Description
Supply Voltage (Pins 3 - 1) (TW < 10ms): 50 V Supply To Output Differential Voltage. See Also VCl 3-2 (Pins 3 - 2): Internally Limited V
Input Voltage (Pins 7/8): -10 To VS +10 V Differential Input Voltage (Pins 7 - 8): 43 V
Input Current (Pins 7/8): 20 MA
High Light:

chip in electronics

,

integrated components

0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp♦0.5A OUTPUT CURRENT

♦18V TO 35V SUPPLY VOLTAGE RANGE

♦INTERNAL CURRENT LIMITING

♦THERMAL SHUTDOWN

♦OPEN GROUND PROTECTION

♦INTERNAL NEGATIVE VOLTAGE CLAMPING TO VS - 45V FOR FAST DEMAGNETIZATION

♦DIFFERENTIAL INPUTS WITH LARGE COMMON MODE RANGE AND THRESHOLD HYSTERESIS ♦UNDERVOLTAGELOCKOUTWITH HYSTERESIS

♦OPEN LOAD DETECTION

♦TWO DIAGNOSTIC OUTPUTS

♦OUTPUT STATUS LED DRIVER



DESCRIPTION

The TDE1897R/TDE1898R is a monolithic Intelligent Power Switch in Multipower BCD Technology, for driving inductive or resistive loads. An internal Clamping Diode enables the fast demagnetization of inductive loads. Diagnostic for CPU feedback and extensive use of electrical protections make this device inherently indistructible and suitable for general purpose industrial applications.



BLOCK DIAGRAM

0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp
